Q38 Throttle Body
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

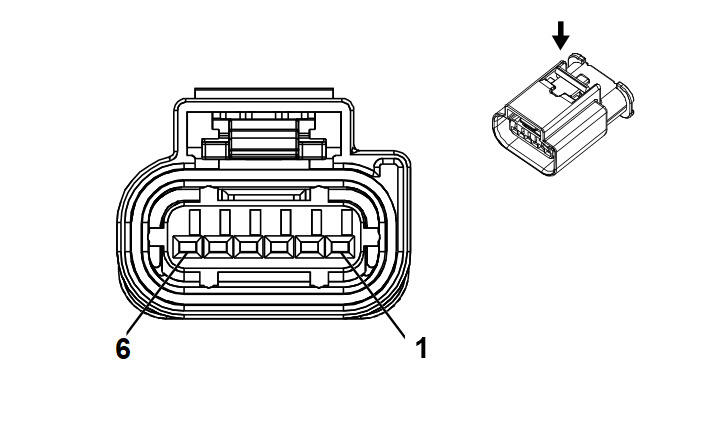

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13507087
- Service Connector: 19352911
- Description: 6-Way F 1.2 MCON Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
581 |
Throttle Actuator Control Open |
I |
- |
| 2 |
0.5 |
BN/WH |
582 |
Throttle Actuator Control Close |
I |
- |
| 3 |
0.5 |
BU/WH |
3630 |
Throttle Position Sensor (SENT1) Signal |
I |
- |
| 4 |
0.5 |
BK/BN |
2752 |
Throttle Position Sensor Low Reference |
I |
- |
| 5 |
0.5 |
BN/RD |
2701 |
Throttle Position Sensor 5V Reference |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
