Removal Procedure

Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

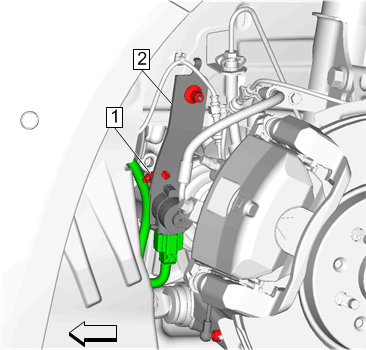

Separate the front suspension 4 corner leveling system position sensor harness clip (1) from the sensor bracket (2).
Courtesy of GENERAL MOTORS COMPANY

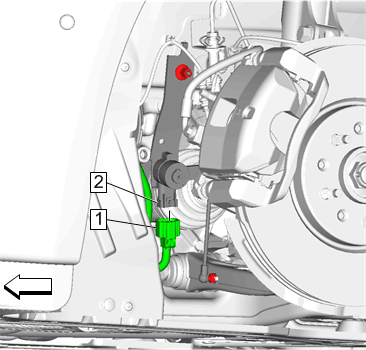

Electrical Connector (1) @ Front Suspension 4 Corner Leveling System Position Sensor (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

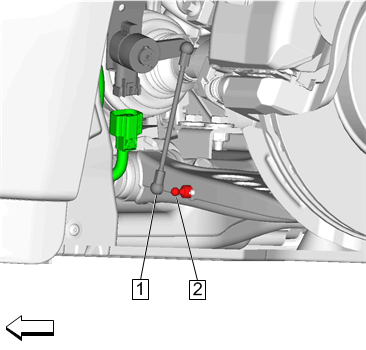

Link Rod (1) @ Ball Stud (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

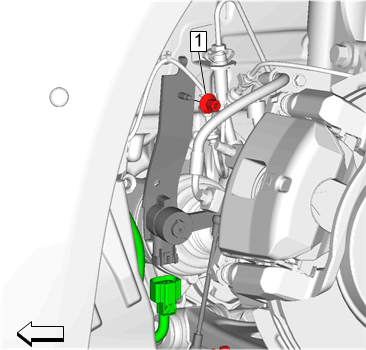

Front Suspension 4 Corner Leveling System Position Sensor Bracket Nut (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

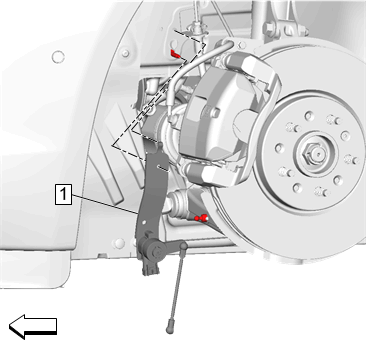

Front Suspension 4 Corner Leveling System Position Sensor (1) - Remove
