Installation Procedure

  1. Connect the electrical connectors.

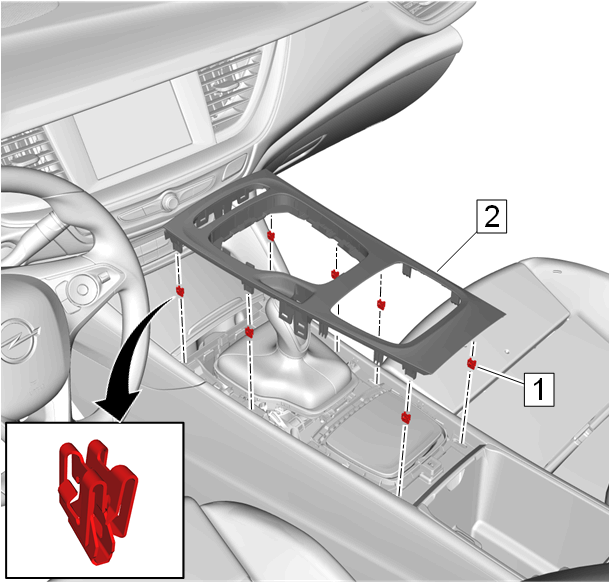

  2. GM4695149Courtesy of GENERAL MOTORS COMPANY

    Align the retainers (1) on the front floor console trim plate (2) to the slots in the front floor console assembly.

  3. Front Floor Console Trim Plate - Install

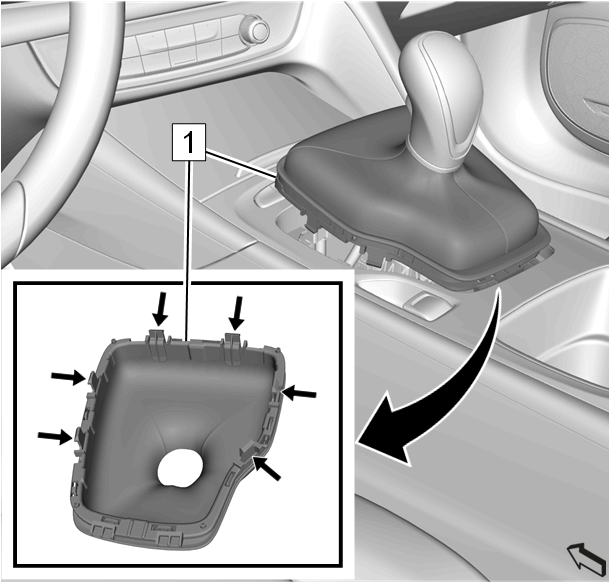

  4. GM4598887Courtesy of GENERAL MOTORS COMPANY

    Manual Transmission: Install the lever boot bezel (1). First install the bezel at the rear then clip in the front of the bezel. Clip in 6 retainers (arrows).

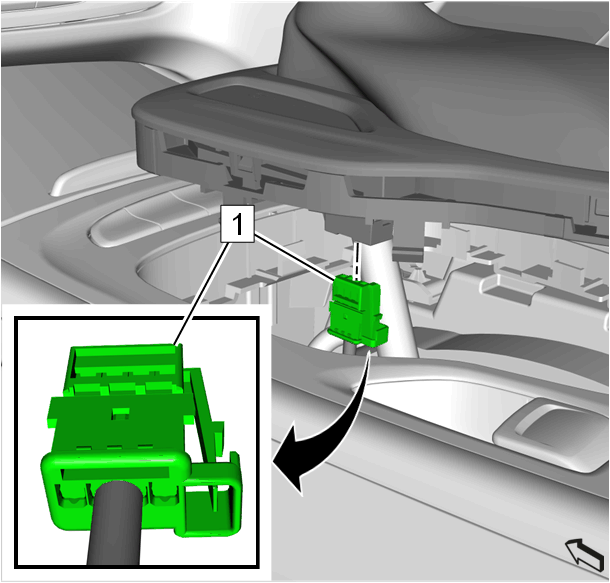

  5. GM4623308Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission: Connect electrical connector (1).

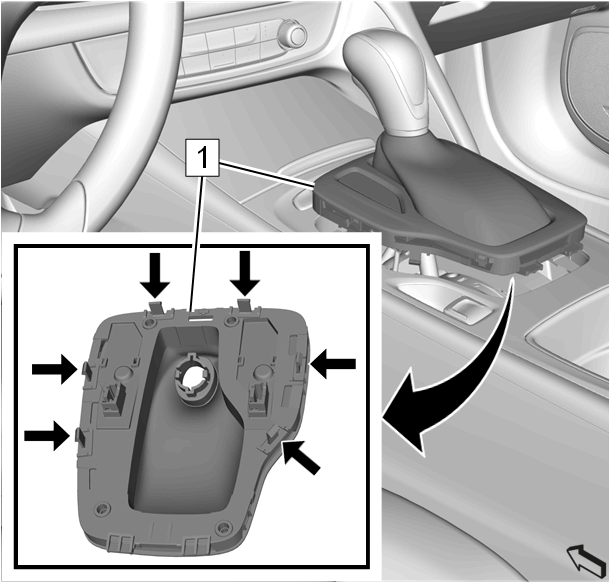

  6. GM4623304Courtesy of GENERAL MOTORS COMPANY

    Automatic Transmission: Install the transmission control lever boot bezel (1). First install the bezel at the rear then clip in the front of the bezel. Clip in 6 retainers (arrows).

  7. Automatic Transmission: Shift the transmission control lever into "P" position.
  8. Release the parking brake.
