Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

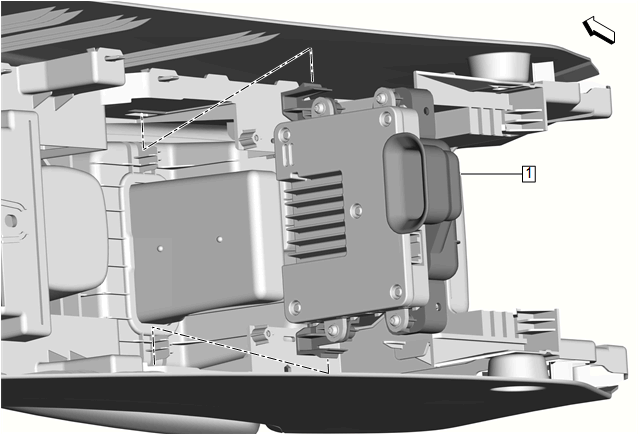

Front Floor Console Housing (1) - Install
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

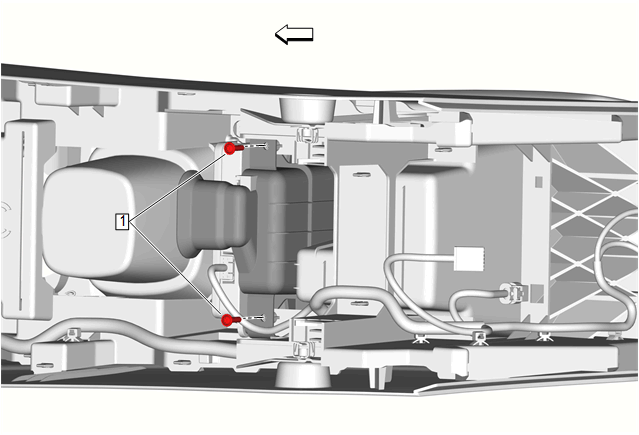

Front Floor Console Bracket Bolt (1) - Install and tighten [2x] 1.5 N.m (13 lb in)
Front Floor Console Rear Air Duct - Install - Front Floor Console Rear Air Duct Replacement (Rear) , or Front Floor Console Rear Air Duct Replacement
