Brake Pressure Modulator Valve Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

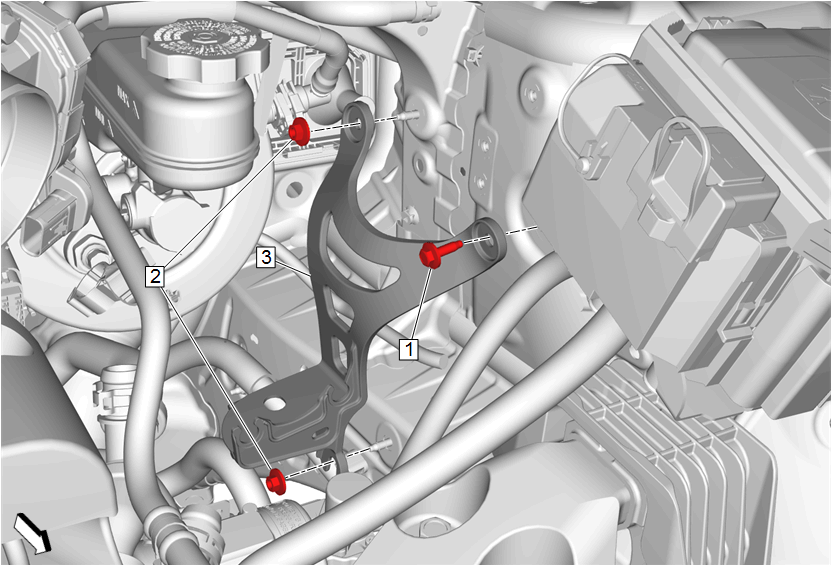

Callout	Component Name
Preliminary Procedure  Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement , or Electronic Brake and Traction Control Module with Brake Pressure Modulator Valve Replacement (LGX)
1	Brake Pressure Modulator Valve Bracket Bolt CAUTION: Fastener Caution Tighten  9 N.m (80 lb in)
2	Brake Pressure Modulator Valve Bracket Nut [2x] Tighten  9 N.m (80 lb in)
3	Brake Pressure Modulator Valve Bracket
