Removal Procedure

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (3.6L LGX)
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
  3. GM4589382Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (2)

  4. Electrical Connector (3) @ Clip (1) - Unclip
  5. GM4589384Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Remove

  6. GM4598869Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Remove

  7. GM4589383Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module Nut (1) - Remove

  8. Fuel Pump Power Control Module Bolt (2) - Remove

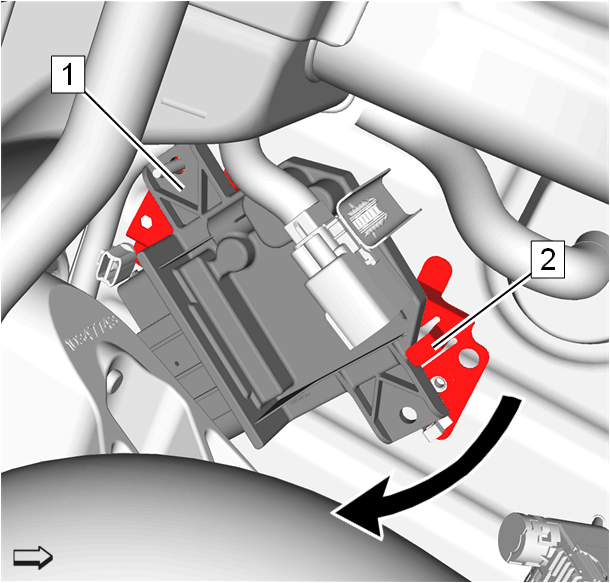

  9. GM4598872Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (1) @ Bracket (2) - Remove - Rotate clockwise

  10. GM4598870Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector. (1)

  11. Fuel Pump Power Control Module (2) - Remove
