Front Parking Assist Alarm Sensor Bracket Replacement: Notes

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Removal Procedure

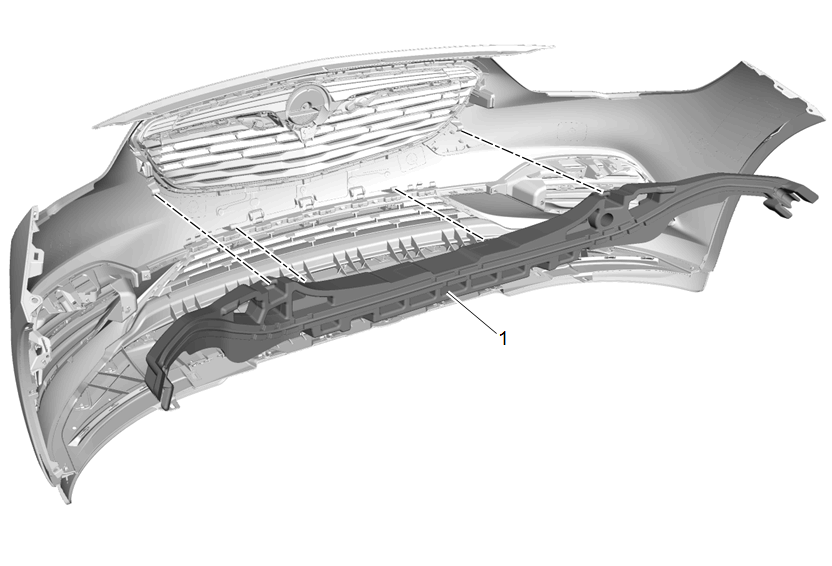

  1. GM4629187

    Front Bumper Fascia Energy Absorber (1) - Remove - Front Bumper Fascia Energy Absorber Replacement - Front Bumper Fascia

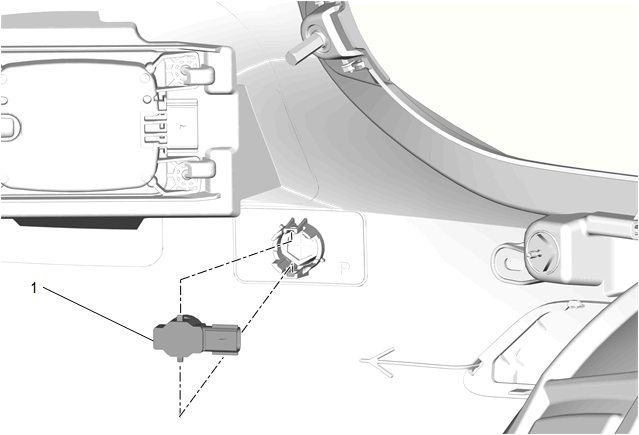

  2. GM5112508

    Front Parking Assist Alarm Sensor (1) - Remove - Front Parking Assist Alarm Sensor Replacement

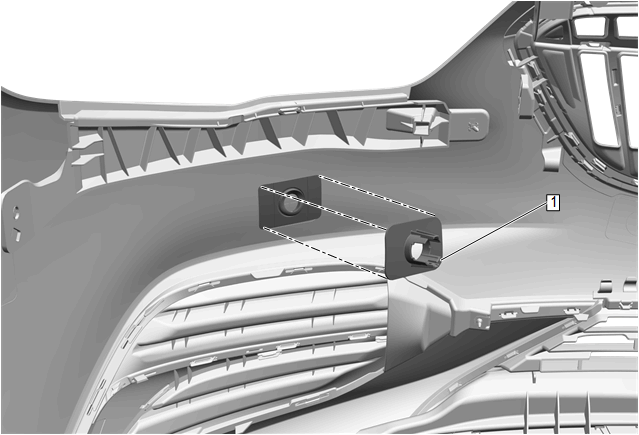

  3. GM5152453

    Using a flat bladed tool carefully remove the front parking assist alarm sensor bracket (1) from the fascia.

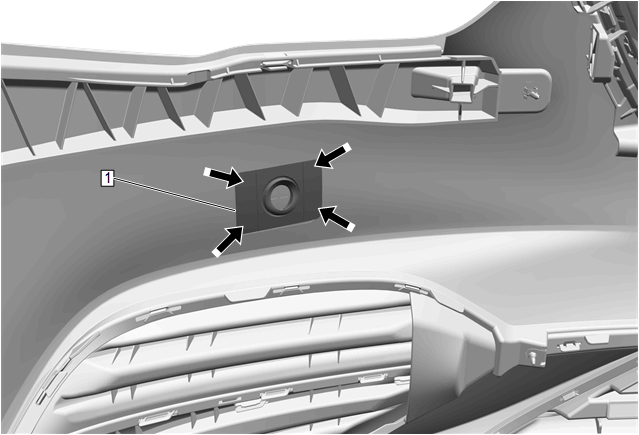

  4. GM5152454
    NOTE:

    Do Not sand/grind off alignment tabs/outline.

  5. Using an appropriate tool sand/grind sonic weld plastic residue from the fascia (1).
