Power Transfer Unit and Input Shaft Seal Removal

Courtesy of GENERAL MOTORS COMPANY

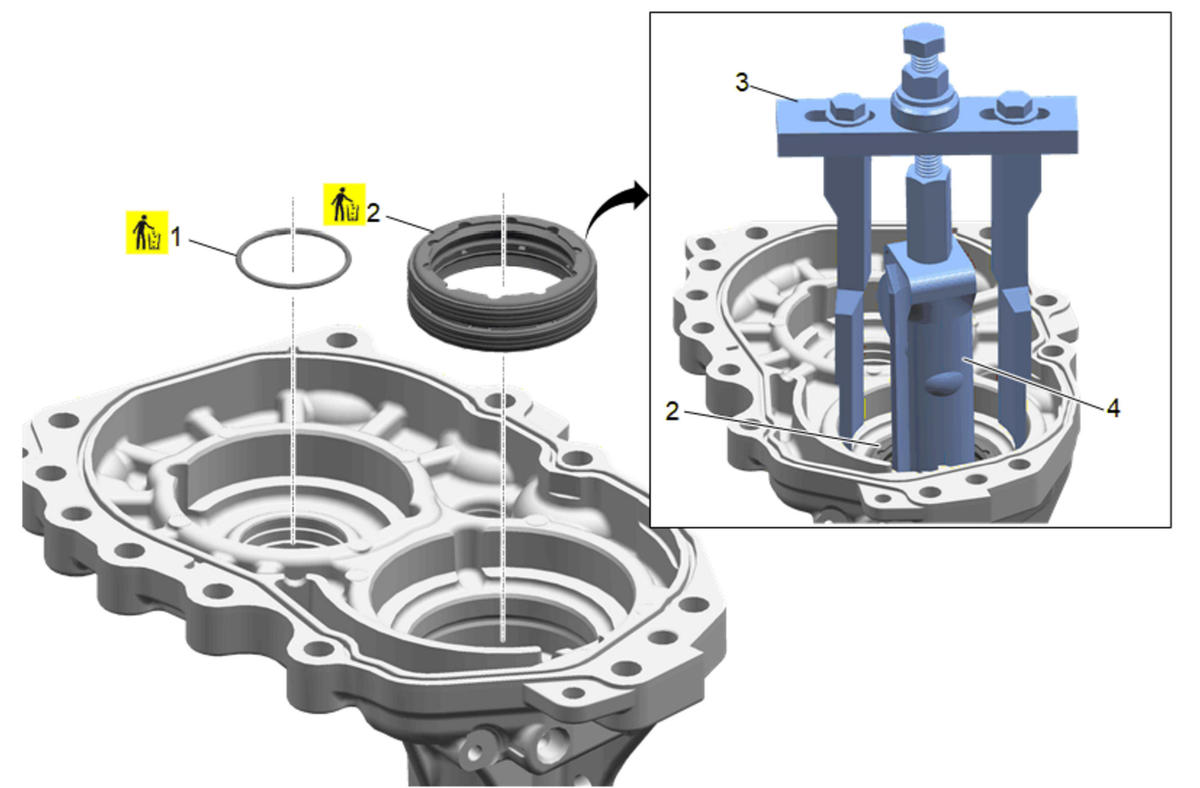

Power Transfer Unit Idler Shaft Bearing Race, Input Shaft Bearing Race and Input Shaft Seal Removal

Callout	Component Name
1	Power Transfer Unit Idler Gear Shaft Tube O-ring- Rear Procedure Remove and DISCARD the seal.
2	Power Transfer Unit Input Shaft Seal- Rear Special Tools DT-26941 Bushing and Bearing Remover DT-45124 Removal Bridge Equivalent regional tools: Special Tools

Callout

Component Name

Power Transfer Unit Idler Gear Shaft Tube O-ring- Rear
Procedure
Remove and DISCARD the seal.

Power Transfer Unit Input Shaft Seal- Rear

Special Tools

Equivalent regional tools: Special Tools
