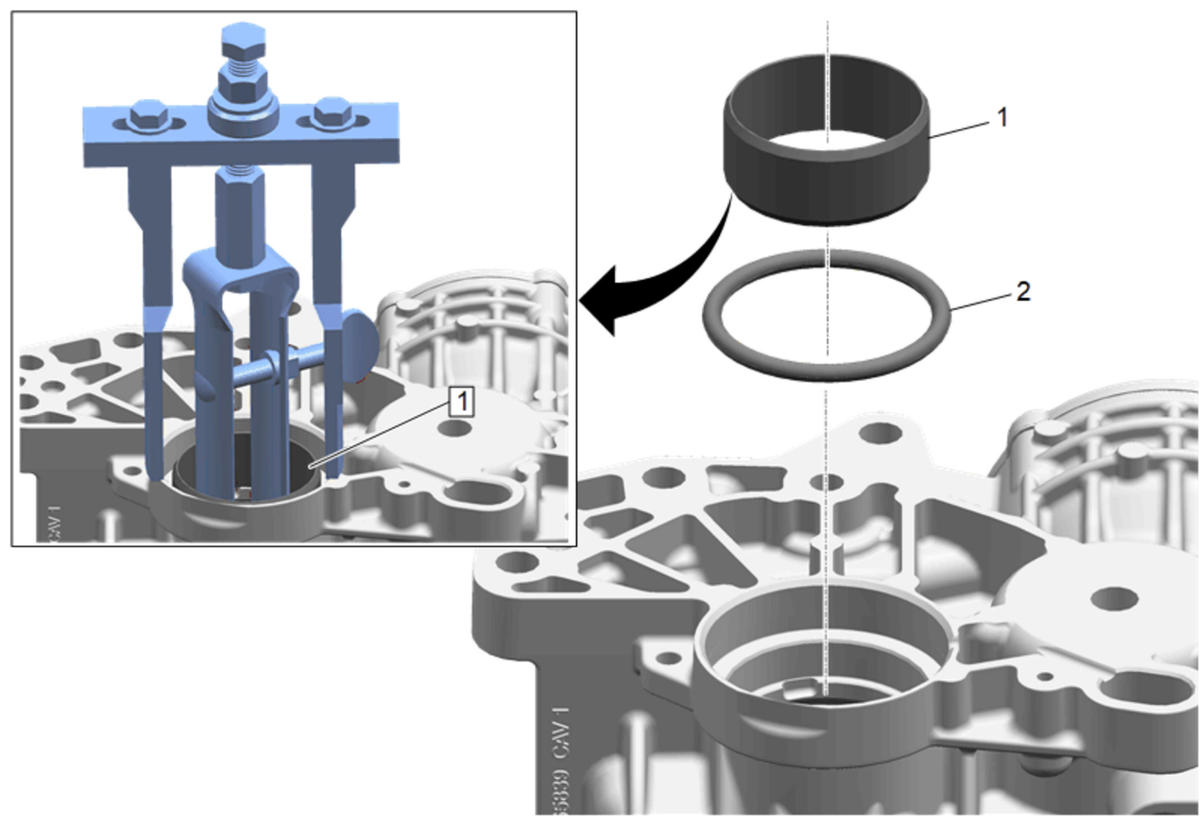

Power Transfer Unit Alignment Sleeve and Face Seal Removal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit Alignment Sleeve Procedure Discard the alignment sleeve if removed. Install a NEW sleeve during assembly. Special Tools DT-44380 Differential Bearing Puller DT-45124 Removal Bridge DT-45124 - 9 Puller Legs Equivalent regional tools:Special Tools
2	Power Transfer Unit Face Seal Procedure Remove and DISCARD the seal.

Callout

Component Name

Power Transfer Unit Alignment Sleeve
Procedure
Discard the alignment sleeve if removed. Install a NEW sleeve during assembly.

Special Tools

Equivalent regional tools:Special Tools

Power Transfer Unit Face Seal
Procedure
Remove and DISCARD the seal.
