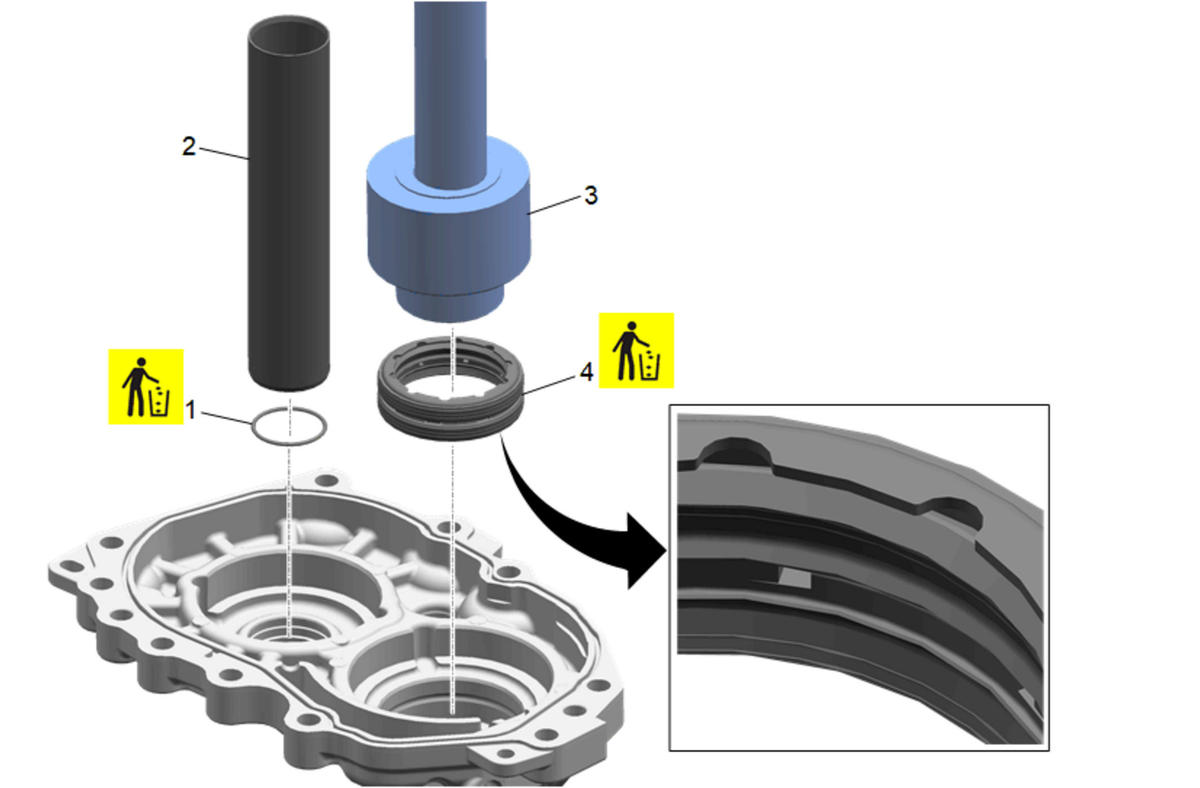

Power Transfer Unit Idler Gear Shaft Tube and O-ring Installation

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Power Transfer Unit Idler Gear Shaft Access Tube O-ring- Rear Procedure Install a NEW seal.
2	Power Transfer Unit Idler Shaft Tube Procedure Install the tube with the knurled OD area facing the extension housing.
3	Power Transfer Unit Input Shaft Seal- Rear Procedure Make sure the seal bore is clean and free of oil or dirt. Install the NEW seal with the notched surface of the seal facing the installer tool. Install the NEW seal onto the DT-51466 Seal Installer with the metal ID portion of the seal facing the DT-51466 Seal Installer. Special Tools DT-51466 Seal Installer DT-305 - 1 Driver Handle Equivalent regional tools: Special Tools

Callout

Component Name

Power Transfer Unit Idler Gear Shaft Access Tube O-ring- Rear
Procedure
Install a NEW seal.

Power Transfer Unit Idler Shaft Tube
Procedure
Install the tube with the knurled OD area facing the extension housing.

Power Transfer Unit Input Shaft Seal- Rear

Procedure

Make sure the seal bore is clean and free of oil or dirt.
Install the NEW seal with the notched surface of the seal facing the installer tool.
Install the NEW seal onto the DT-51466 Seal Installer with the metal ID portion of the seal facing the DT-51466 Seal Installer.

Special Tools

Equivalent regional tools: Special Tools
