Steering Wheel Spoke Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

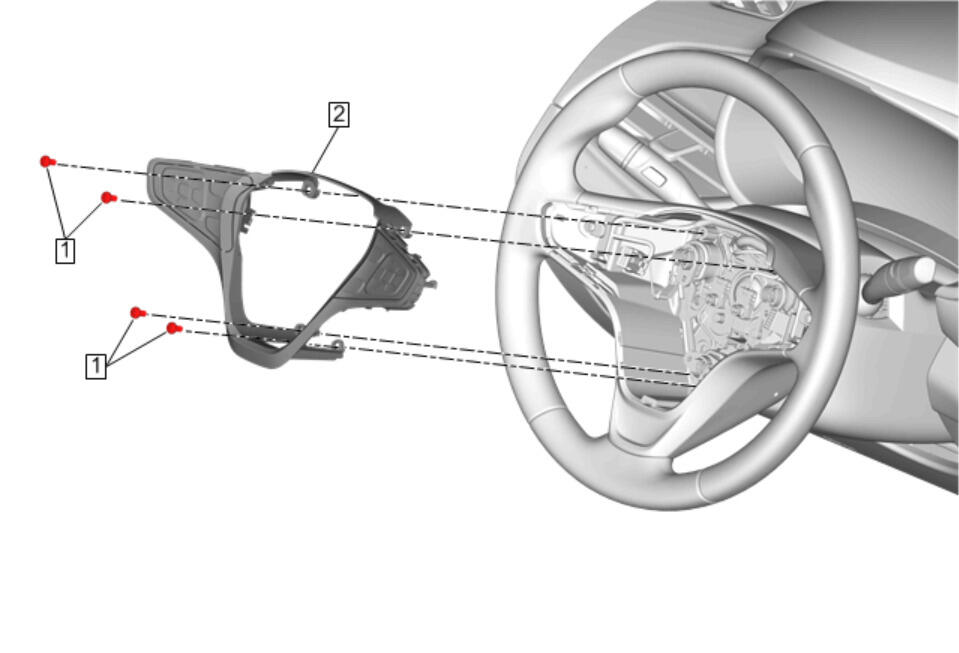

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement
1	Steering Wheel Spoke Cover Fastener [4x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Steering Wheel Spoke Cover Procedure Use a flat bladed plastic tool to remove. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Steering Wheel Spoke Cover Fastener [4x]

CAUTION:

Tighten
1.5 N.m (13 lb in)

Steering Wheel Spoke Cover

Procedure
