Installation Procedure

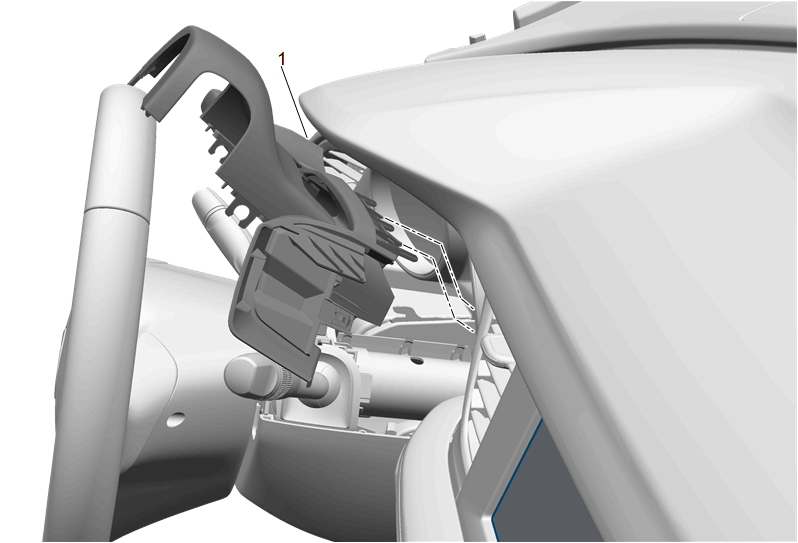

  1. GM5121844Courtesy of GENERAL MOTORS COMPANY

    Install the steering column upper trim cover (1) to the instrument cluster assembly.

  2. Connect the electrical connector.
  3. GM5121843Courtesy of GENERAL MOTORS COMPANY

    Install the steering column upper trim cover (1) to the instrument panel upper trim panel.

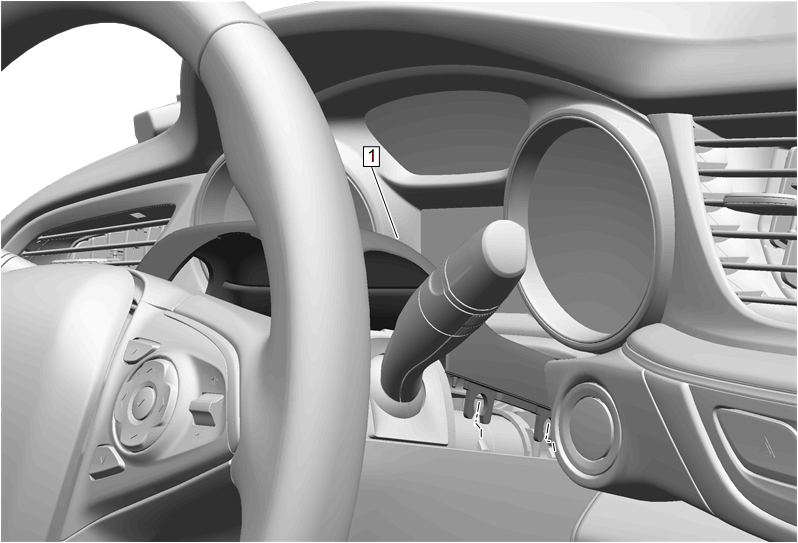

  4. GM5121841Courtesy of GENERAL MOTORS COMPANY

    Install the steering column upper trim cover (1) to the steering column lower trim cover.
