Steering Column Lower Trim Cover Replacement

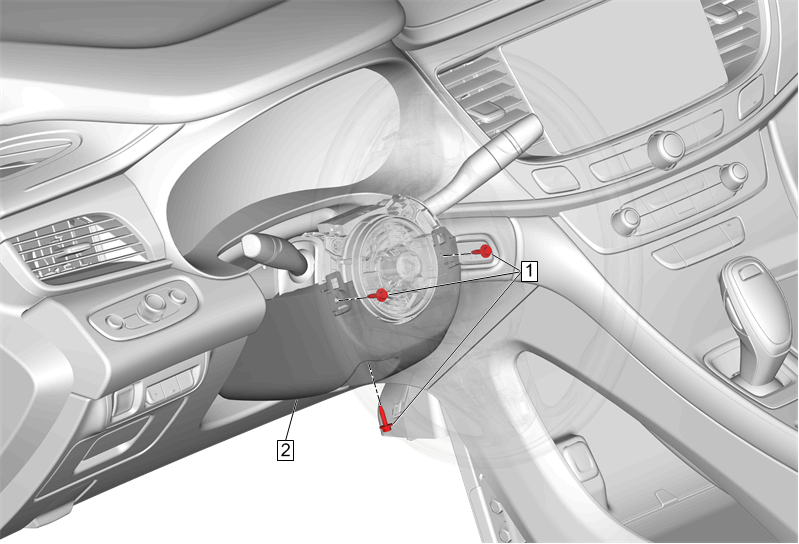

GM4425239Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Steering Column Upper Trim Cover Replacement
1 Steering Column Lower Trim Cover Bolt [3x]
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Extend the steering column to the fully telescoped position.
  2. Remove the lower steering column lower trim cover bolt.
  3. Rotate the steering wheel to the left and to the right to remove the upper steering column lower trim cover bolts.

Tighten
2.5 N.m (22 lb in)
2 Steering Column Lower Trim Cover
