Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

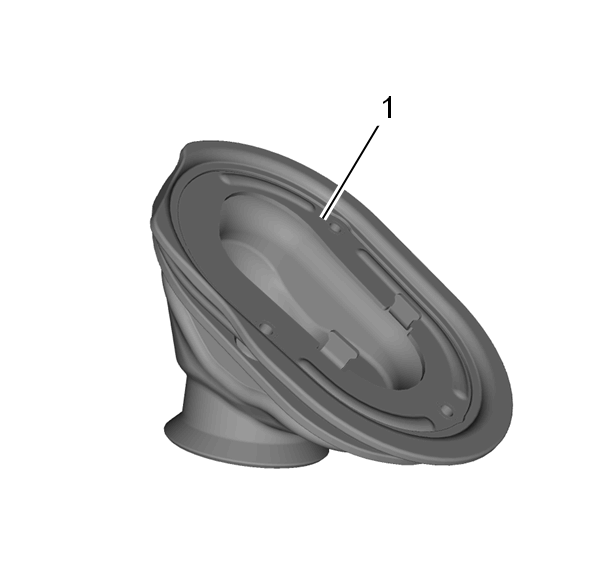

Position a NEW intermediate steering shaft outer boot clamp (1) onto the intermediate steering shaft outer boot.
Courtesy of GENERAL MOTORS COMPANY

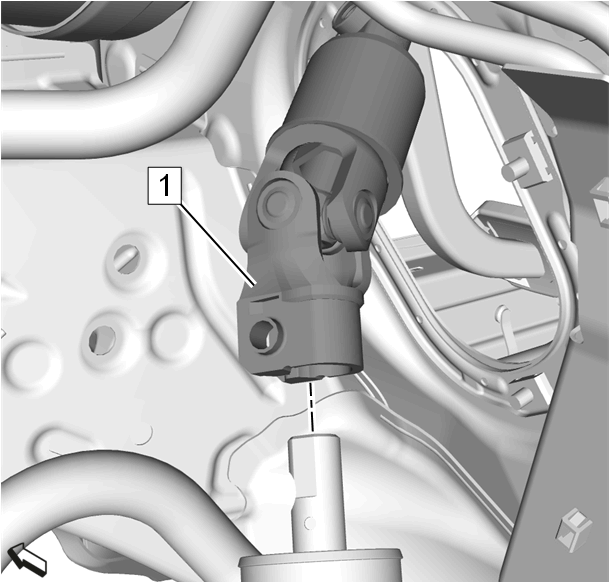

Position the intermediate steering shaft (1) in the vehicle.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

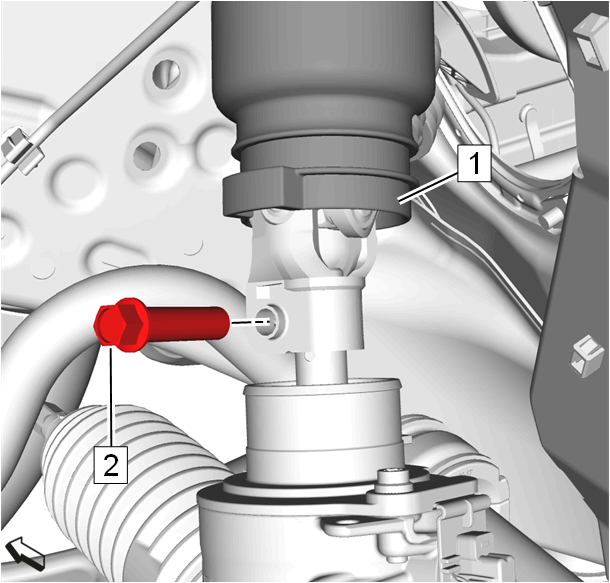

Intermediate Steering Shaft Lower Bolt (2) - Install and tighten 42 N.m (31 lb ft)
1. Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers
Slide the intermediate steering shaft outer boot (1) downwards and onto the steering gear.
Use the CH-804 pliers (1) to install the NEW intermediate steering shaft outer boot clamp.
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft Inner Boot (1) - Install - Intermediate Steering Shaft Boot Replacement (Inner) , or Intermediate Steering Shaft Boot Replacement (Outer)
