Removal Procedure

  1. GM4425023Courtesy of GENERAL MOTORS COMPANY

    Remove the inner intermediate steering shaft boot. Intermediate Steering Shaft Boot Replacement (Outer)

  2. Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation

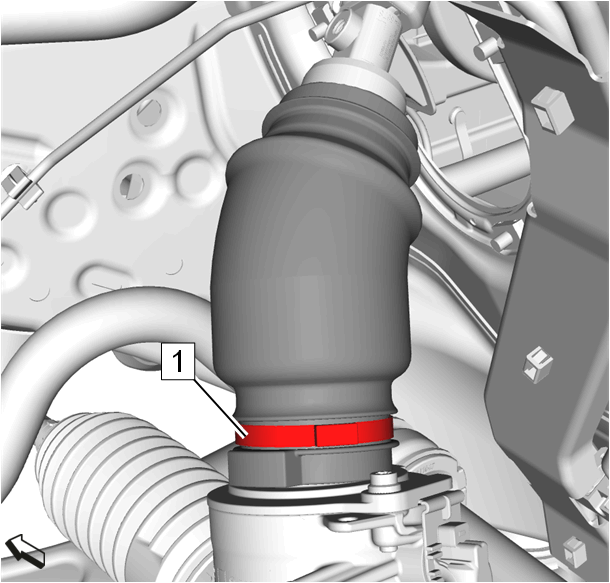

  3. GM4626830Courtesy of GENERAL MOTORS COMPANY

    Remove and discard the intermediate steering shaft outer boot clamp (1).

  4. GM4626831Courtesy of GENERAL MOTORS COMPANY

    Slide the intermediate steering shaft outer boot (1) upwards and off the intermediate shaft and out through the pass through in the interior of the vehicle.

  5. Remove the intermediate steering shaft outer boot (1) from the vehicle.
