Steering Gear Heat Shield Replacement

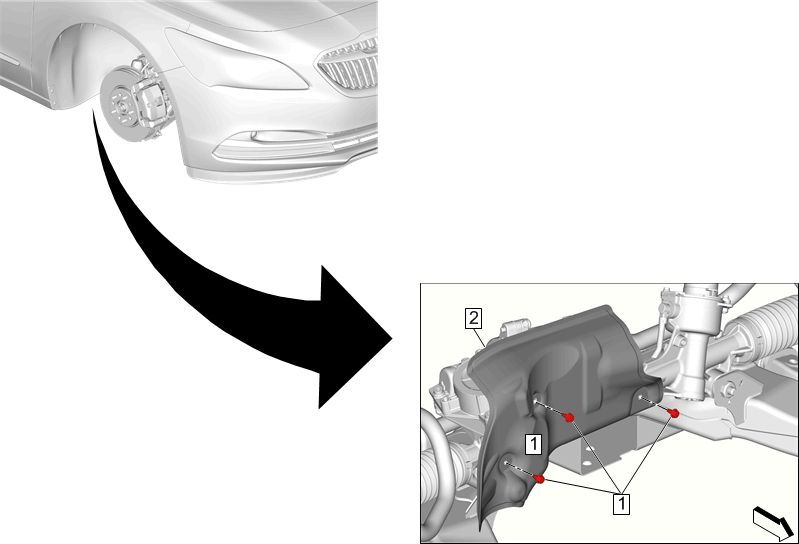

GM4486900Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Steering Gear Heat Shield Bolt [3x]
CAUTION:

Fastener Caution


Tighten
9 N. m (80 lb in)
2 Steering Gear Heat Shield
