Removal Procedure

  1. Warm Up Three-Way Catalytic Converter - Remove - Warm Up Three-Way Catalytic Converter Replacement (2. 0L LTG)
  2. Steering Linkage Outer Tie Rod - Remove - Steering Linkage Outer Tie Rod Replacement

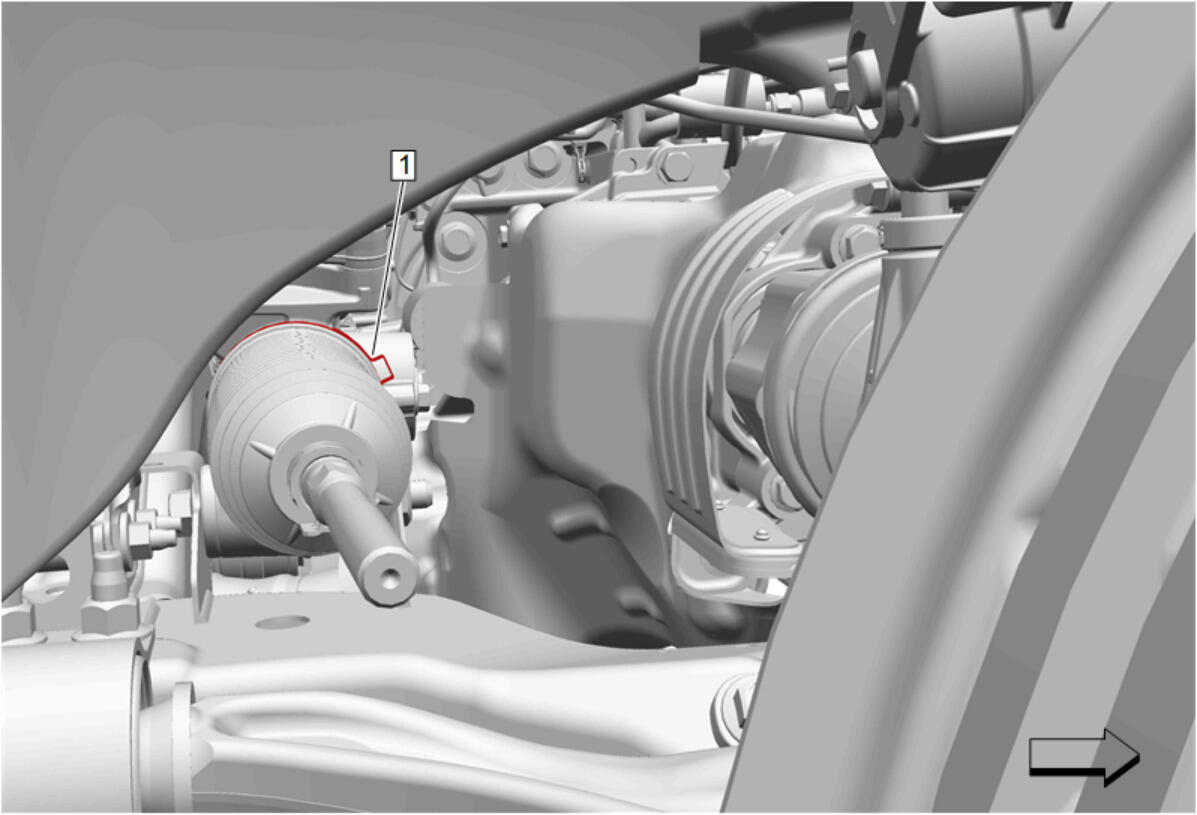

  3. GM5044198Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Inner Clamp (1) - Remove and DISCARD

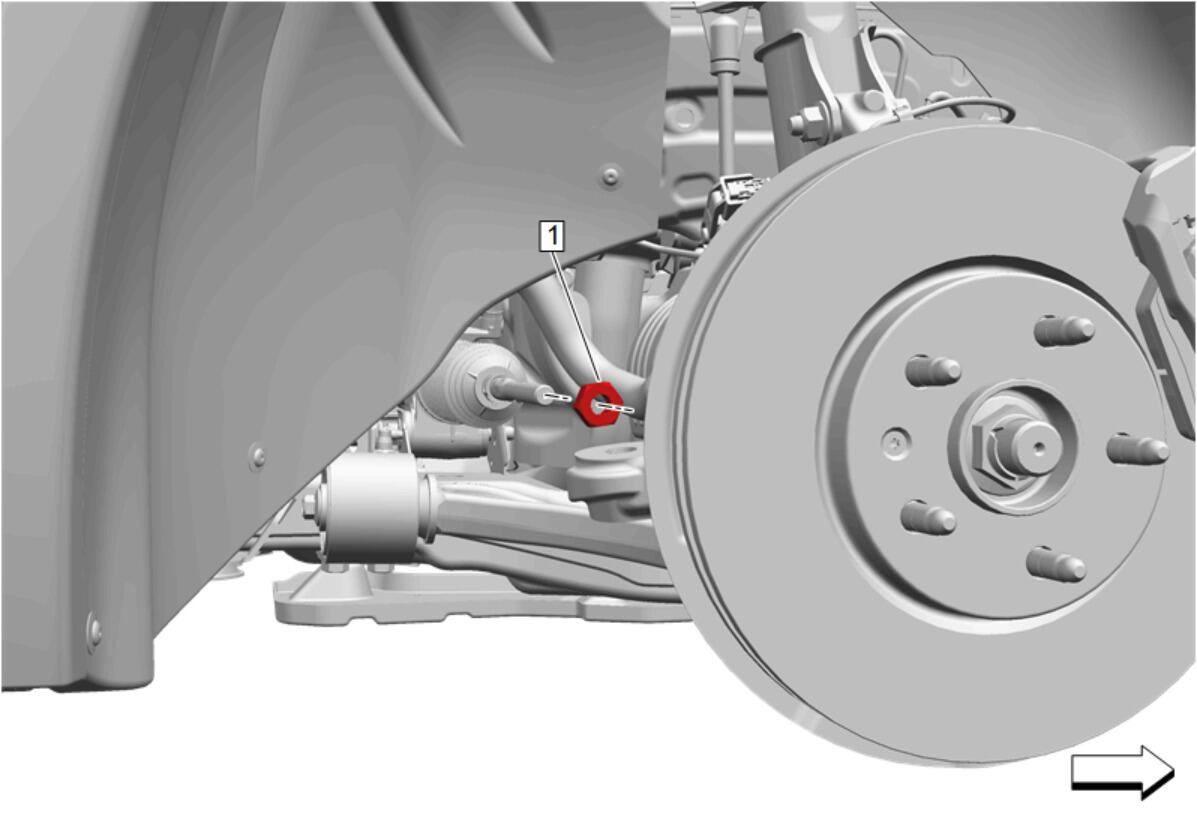

  4. GM5044834Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Place match marks on the steering linkage inner tie rod nut and the steering linkage inner tie rod.

    Steering Linkage Inner Tie Rod Nut (1) - Remove

  5. GM5044270Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot Outer Clamp (1) - Remove

  6. GM5044277Courtesy of GENERAL MOTORS COMPANY

    Steering Gear Boot (1) - Remove
