Radio Rear Compartment Speaker Replacement
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

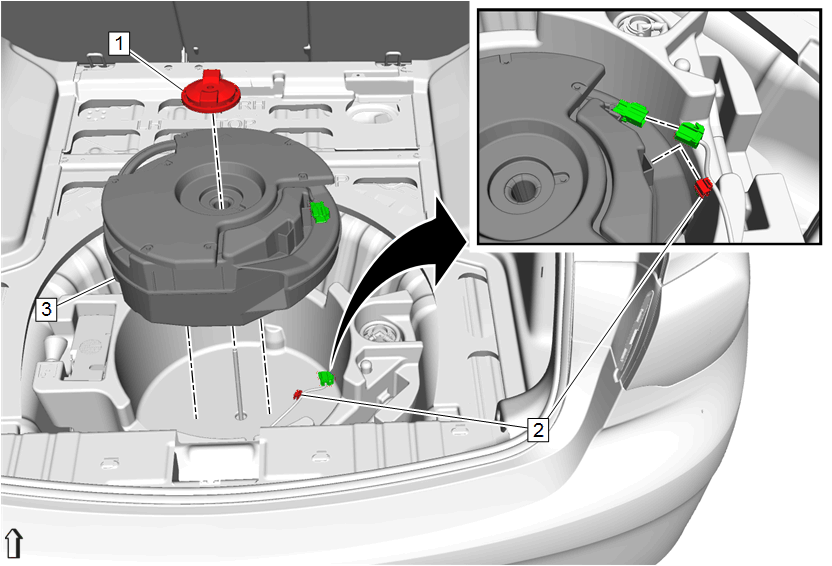

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Load Floor Trim Panel Replacement |
|
| 1 | Spare Wheel Stowage Nut
CAUTION:
Tighten 3.5 N.m (31 lb in) |
| 2 | Radio Rear Compartment Speaker Retainer |
| 3 | Radio Rear Compartment Speaker Procedure Disconnect the electrical connector. |
