Cargo Partition Track Replacement

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

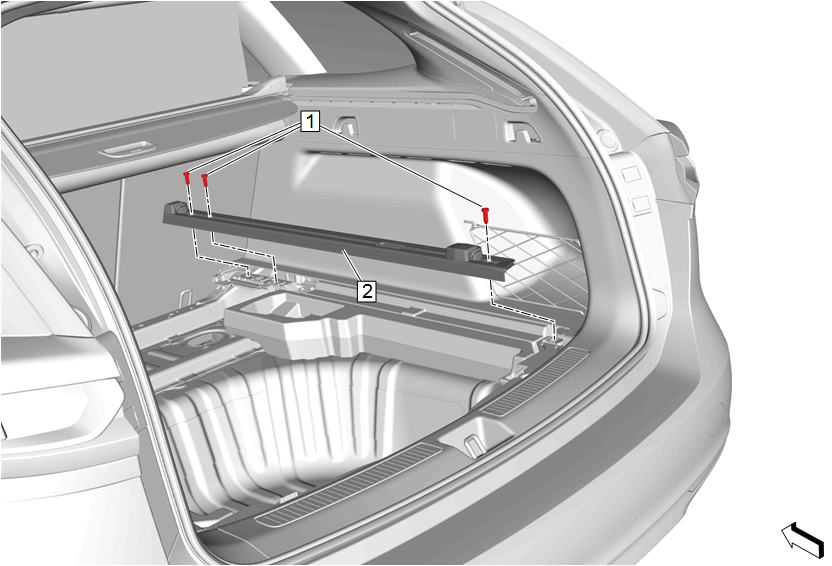

GM4738710
Callout Component Name
Preliminary Procedure
Rear Compartment Floor Panel Trim - Remove
1 Cargo Partition Track Bolt[3x]
CAUTION:

Fastener Caution


Tighten
20 N.m (15 lb ft)
2 Cargo Partition Track
Procedure
Unclip@Rear Compartment Side Trim
