S38 Ignition Mode Switch
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

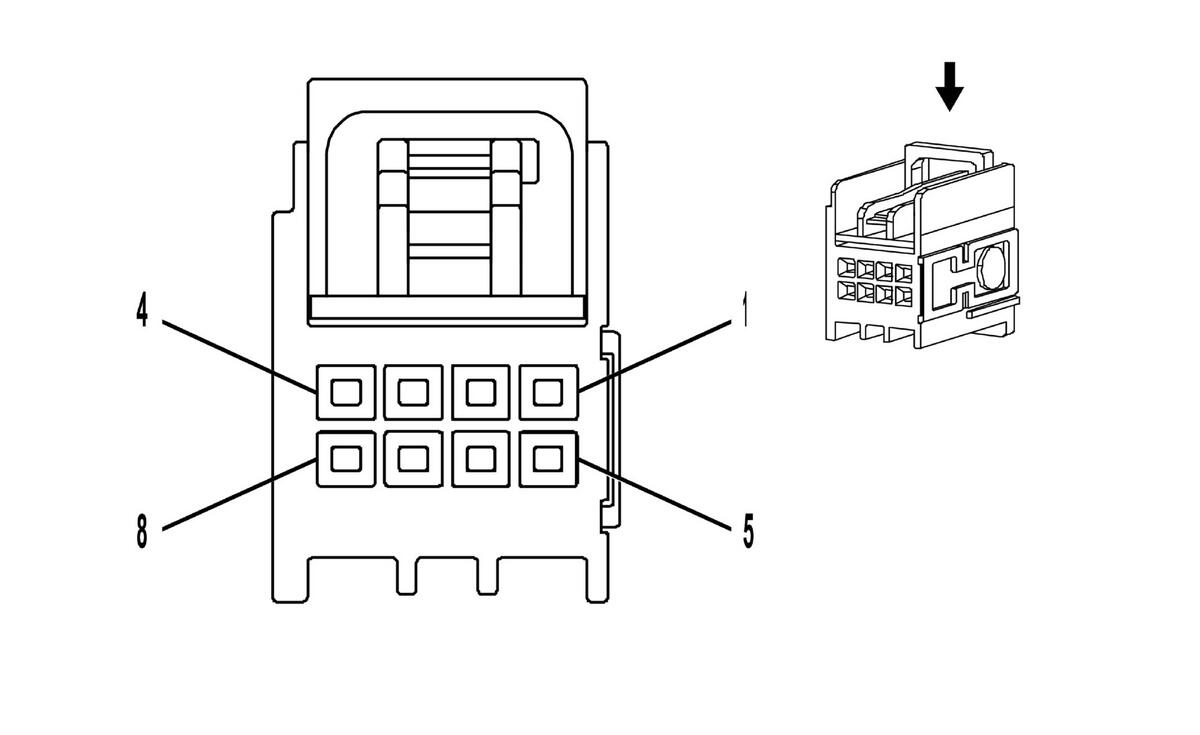

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13235933
- Service Connector: 13576543
- Description: 8-Way F 0.64 Series (BK with BK Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.13 |
BN |
5720 |
Ignition Mode Switch Accessory LED Signal |
I |
- |
| 3 |
0.13 |
GN |
3558 |
Passive Start Switch Signal 2 |
I |
- |
| 4 |
0.35 |
BK/WH |
1651 |
Signal Ground |
I |
- |
| 5 |
0.13 |
BU |
5719 |
Ignition Mode Switch Start LED Signal |
I |
- |
| 6 |
0.13 |
VT |
5723 |
Ignition Mode Switch Mode Voltage |
I |
- |
| 7 |
0.13 |
GY |
3559 |
Passive Start Switch 2 Low Reference |
I |
- |
| 8 |
0.35 |
YE |
6817 |
LED Backlight Dimming Control |
I |
- |
