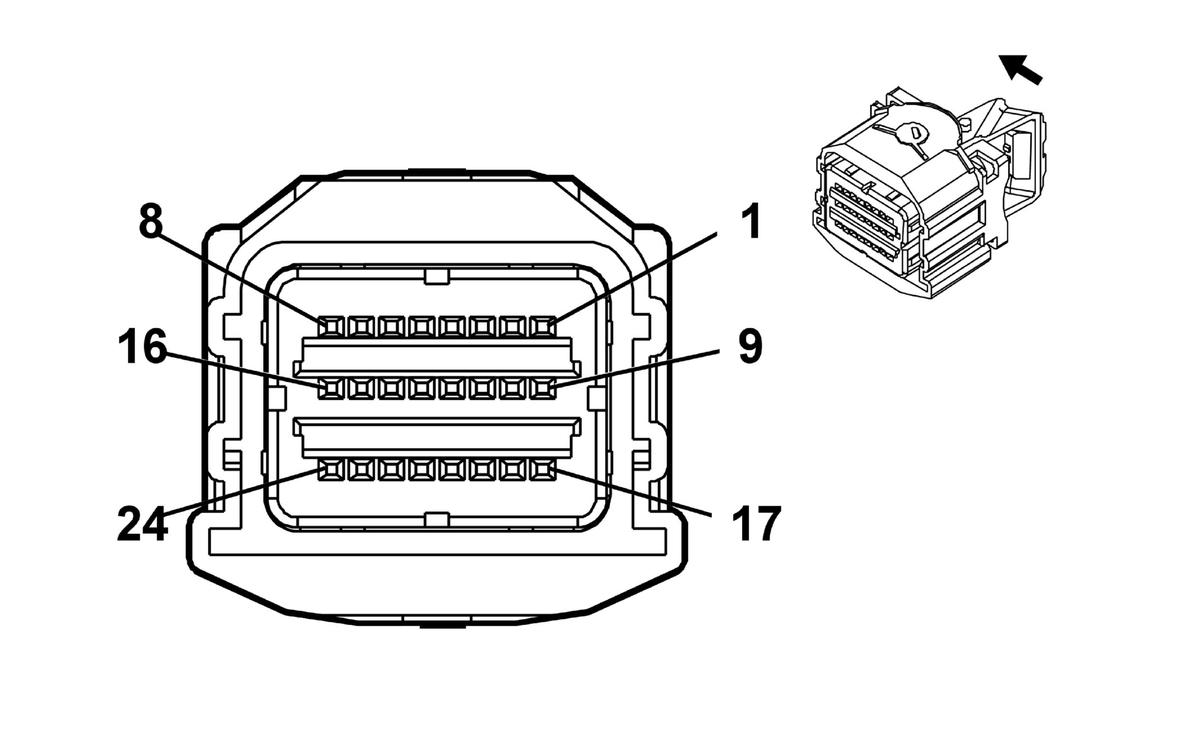

K36 Inflatable Restraint Sensing and Diagnostic Module X1

WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Connector Part Information

Harness Type: Instrument Panel
OEM Connector: 13508187
Service Connector: 19355767
Description: 24-Way F 0.64 Series, Sealed (YE)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19367373	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available
II	19368490	J-35616-64B (LT BU)	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	WH/RD	7492	Left Hood Actuator High Control	I	-
2	0.35	BK/OG	7491	Left Hood Actuator Low Control	I	-
3	0.5	BN/OG	3020	Steering Wheel Module Stage 1 Low Control	II	-
4	0.5	OG/VT	3021	Steering Wheel Module Stage 1 High Control	II	-
5	0.35	YE/OG	3025	Passenger IP Module Stage 1 High Control	I	-
6	0.35	OG/WH	3024	Passenger IP Module Stage 1 Low Control	I	-
7	0.35 0.35	OG/VT BK/OG	3026 7489	Passenger IP Module Stage 2 Low Control Right Hood Actuator Low Control	I I	B3T -B3T
8	0.35 0.35	VT/RD GY/OG	7490 3027	Right Hood Actuator High Control Passenger IP Module Stage 2 High Control	I I	B3T -B3T
9	0.5	RD/BN	2240	Battery Positive Voltage	II	-
10	0.35	VT/WH	5234	Passenger Seat Belt Indicator Control	I	UHH
11	0.35	BU	2307	Passenger Air Bag On Indicator Control	I	-
12	0.35	GN	2308	Passenger Air Bag Off Indicator Control	I	-
13	0.35	VT/OG	371	Passenger IP Module Disable Switch Signal	I	-
14	0.35	BU/OG	7328	Passenger IP Module Disable Switch Low Reference	I	-
15	0.35	GN	5060	Low Speed GMLAN Serial Data	I	-
16	-	-	-	Not Occupied	-	-
17	0.35	WH/BU	5986	Serial Data Communication Enable	I	-
18	0.35	BU/YE	6105	High Speed GMLAN Serial Data (+) 2	I	-
19	0.75	BK/WH	2450	Ground	II	-
20	0.35	WH	6106	High Speed GMLAN Serial Data (-) 2	I	-
21	0.35	OG/BU	3078	Driver Knee Module High Control	I	-
22	0.35	GY/OG	3079	Driver Knee Module Low Control	I	-
23	0.35	WH/OG	3077	Passenger Knee Module Low Control	I	-
24	0.35	OG/BU	3076	Passenger Knee Module High Control	I	-
