B10B Ambient Light/Sunload Sensor
WARNING: This page is about a different car, the 2018 Buick Regal TourX and 2018 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.
|
|

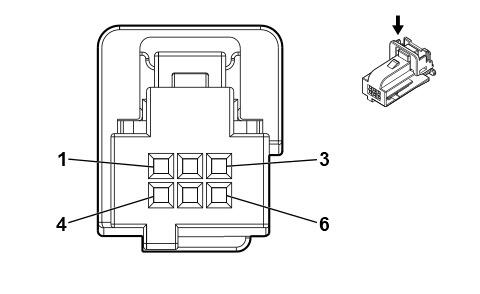

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13590886
- Service Connector: 19333315
- Description: 6-Way F 0.64 Micro-Quadlock Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.13 |
GY |
1120 |
Solar Sensor Pulsed Voltage Reference |
I |
CJ2 |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.13 |
WH |
278 |
Ambient Light Sensor Signal |
I |
- |
| 4 |
0.13 |
BU |
734 |
Inside Air Temperature Sensor Signal |
I |
CJ2 |
| 5 |
0.13 |
GY |
728 |
Security Indicator Control |
I |
- |
| 6 |
0.13 |
BN |
7567 |
Solar Sensor Low Reference |
I |
CJ2 |
