Cargo Net Bracket Replacement

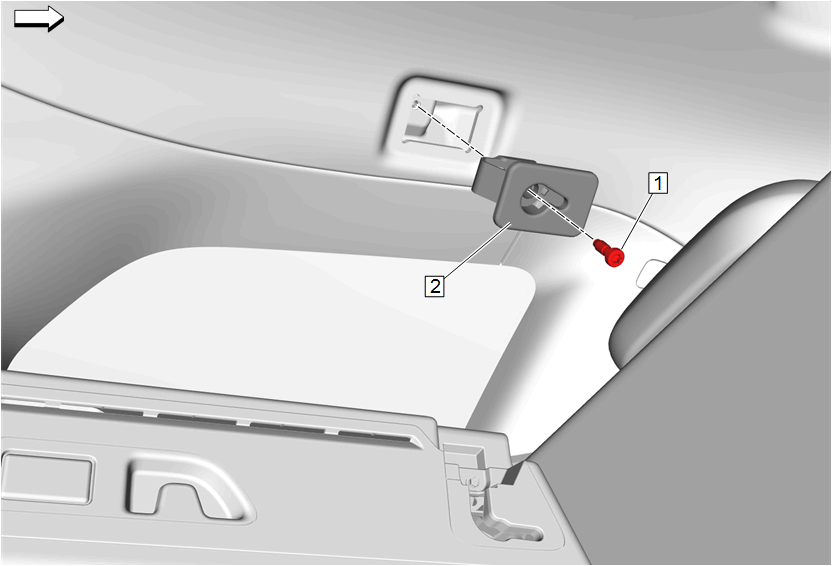

GM4745231Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Cargo Net - Remove
1 Cargo Net Bracket Bolt
CAUTION:

Fastener Caution


Tighten
20 N.m (15 lb ft)
2 Cargo Net Bracket
