Rear Closure Hands Free Module Replacement (GS Bumper)

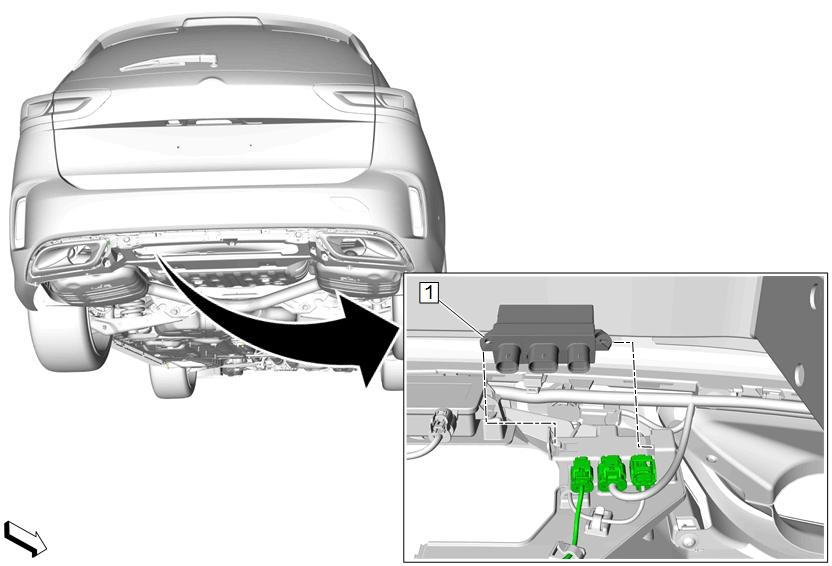

GM4755567Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Battery Negative Cable Disconnection and Connection (3.6L LGX)
  2. Rear Bumper Valance Panel Replacement (GS)
1 Rear Closure Hands Free Module

Procedure

  1. Disconnect the electrical connectors.
  2. Unlock the retaining tabs.
  3. Programming and Setup - Control Module References
