Rear Closure Hands Free Module Replacement (Base Bumper)

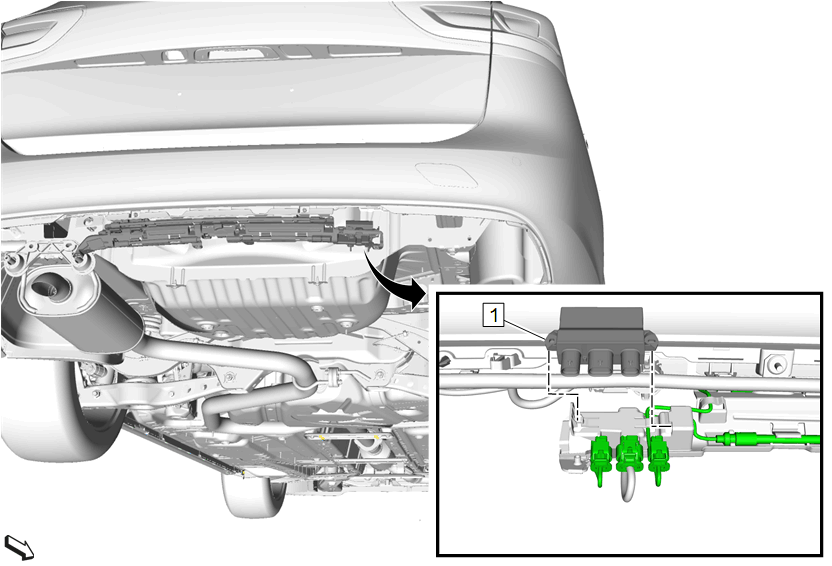

GM4639511Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Battery Negative Cable Disconnection and Connection (3.6L LGX) , or Battery Negative Cable Disconnection and Connection (2.0L LTG)
  2. Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Rear Closure Hands Free Module

Procedure

  1. Disconnect the electrical connectors.
  2. Unlock the retaining tabs.
  3. Lower the vehicle.
  4. Programming and Setup - Control Module References
