Removal Procedure

  1. GM5313431Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Transmission (2) - Remove - Windshield Wiper Transmission Replacement

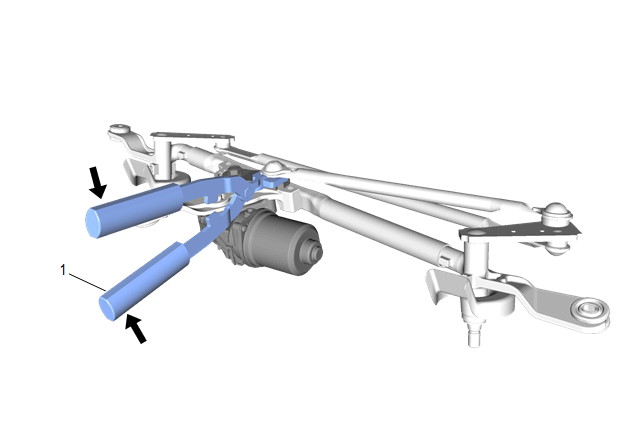

  2. GM5313547Courtesy of GENERAL MOTORS COMPANY

    Using the BO 39232  Wiper Linkage Separator (1), remove the windshield wiper motor crank arm from the transmission link.

  3. GM5313546Courtesy of GENERAL MOTORS COMPANY

    Windshield Wiper Motor Bolt (1) - Remove [3x]

  4. Remove the windshield wiper motor (2) from the windshield wiper transmission.
