Installation Procedure

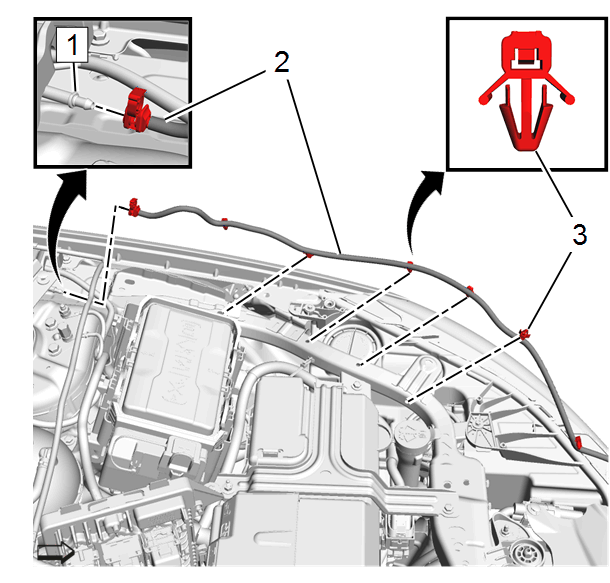

  1. GM4630449Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (2) - Install

  2. Windshield Washer Pump Hose (2) @ Windshield Washer Nozzle Hose (1) - Connect
  3. Windshield Washer Pump Hose Retainer (3) - Install [6x]

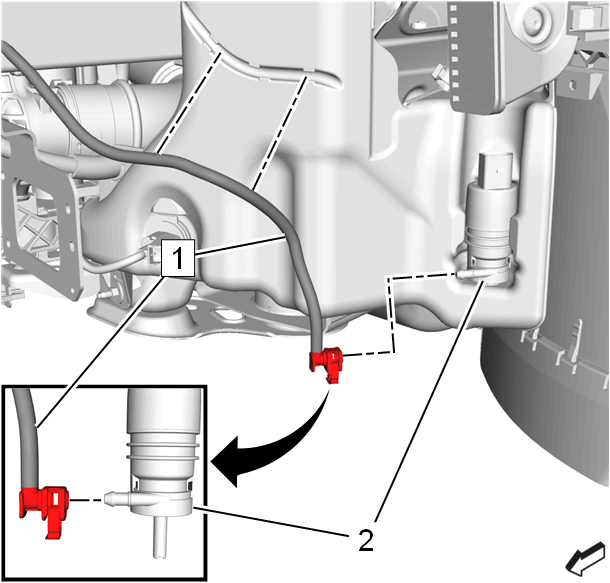

  4. GM4630448Courtesy of GENERAL MOTORS COMPANY

    Windshield Washer Pump Hose (1) @ Windshield Washer Pump (2) - Connect

  5. Front Bumper Fascia Replacement - Install
