Windshield Washer Nozzle Replacement

Courtesy of GENERAL MOTORS COMPANY

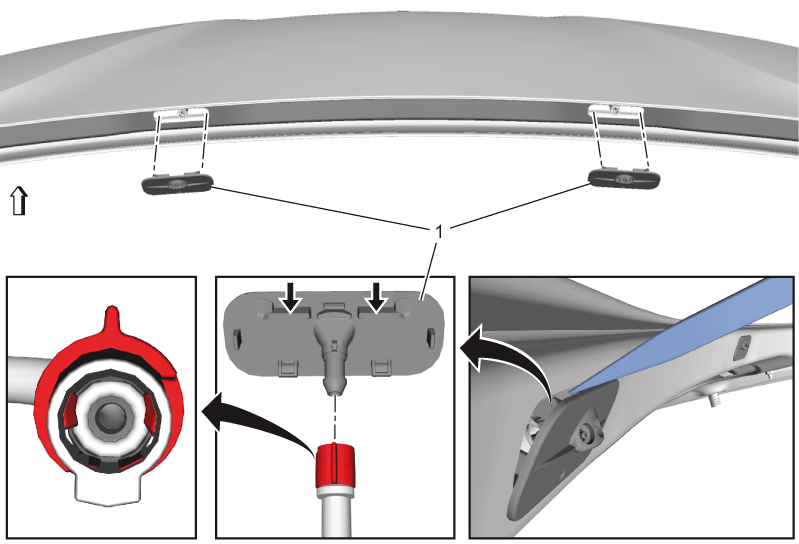

Callout	Component Name
1	Windshield Washer Nozzle [2x] Procedure Unlock the retaining tabs. Disconnect the windshield washer hose. [2x] Windshield Washer Nozzle - Check and Adjust [2x] - Windshield Washer Nozzle Adjustment NOTE: The windshield washer nozzles are normally already adjusted correctly by the supplier. But there might be some production variations that could cause miss-adjustment of the washer nozzles for that vehicle.

Callout

Component Name

Windshield Washer Nozzle [2x]

Procedure

Unlock the retaining tabs.
Disconnect the windshield washer hose. [2x]
Windshield Washer Nozzle - Check and Adjust [2x] - Windshield Washer Nozzle Adjustment

NOTE:

The windshield washer nozzles are normally already adjusted correctly by the supplier. But there might be some production variations that could cause miss-adjustment of the washer nozzles for that vehicle.
