Dash Upper Extension Panel Opening Cover Replacement

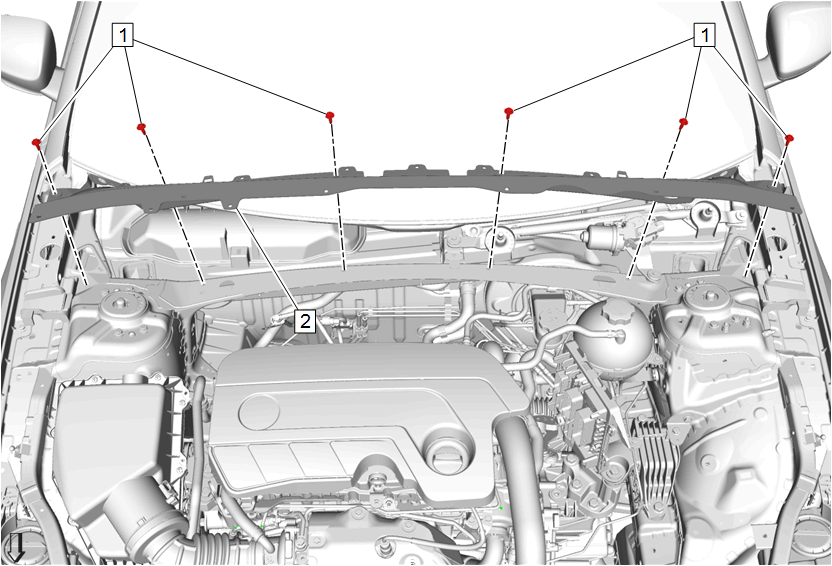

GM4629288Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Inlet Grille Panel Replacement
  2. Disconnect the electrical connector.
  3. Release the wiring harness retainer.
  4. Route the connector and harness with grommet through the pass-thru in the dash upper extension panel opening cover.
1 Dash Upper Extension Panel Opening Cover Bolt [6x]
CAUTION:

Fastener Caution


Tighten
4.5 N.m (40 lb in)
2 Dash Upper Extension Panel Opening Cover
