Power Transfer Unit Extension Housing Removal
 Courtesy of GENERAL MOTORS COMPANY
|

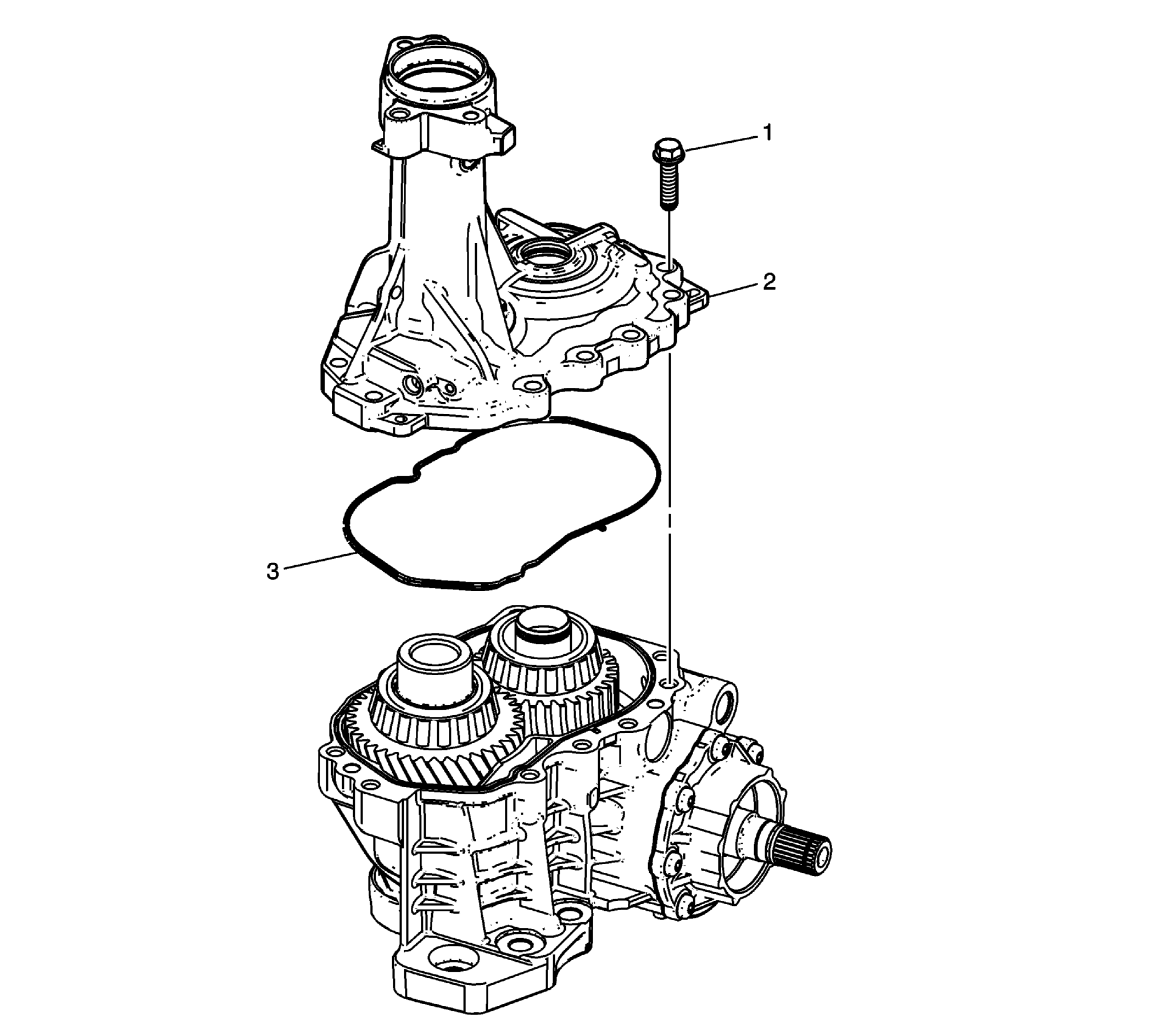

Power Transfer Unit Extension Housing Removal
| Callout |
Component Name |
| 1 |
Power Transfer Unit Extension Housing Bolt [10x]
Procedure
Remove and DISCARD |
| 2 |
Power Transfer Unit Extension Housing |
| 3 |
Power Transfer Unit Cover Housing Seal
Procedure
Remove and DISCARD the seal. |
