Power Transfer Unit Input Shaft and Idler Shaft Installation
Courtesy of GENERAL MOTORS COMPANY

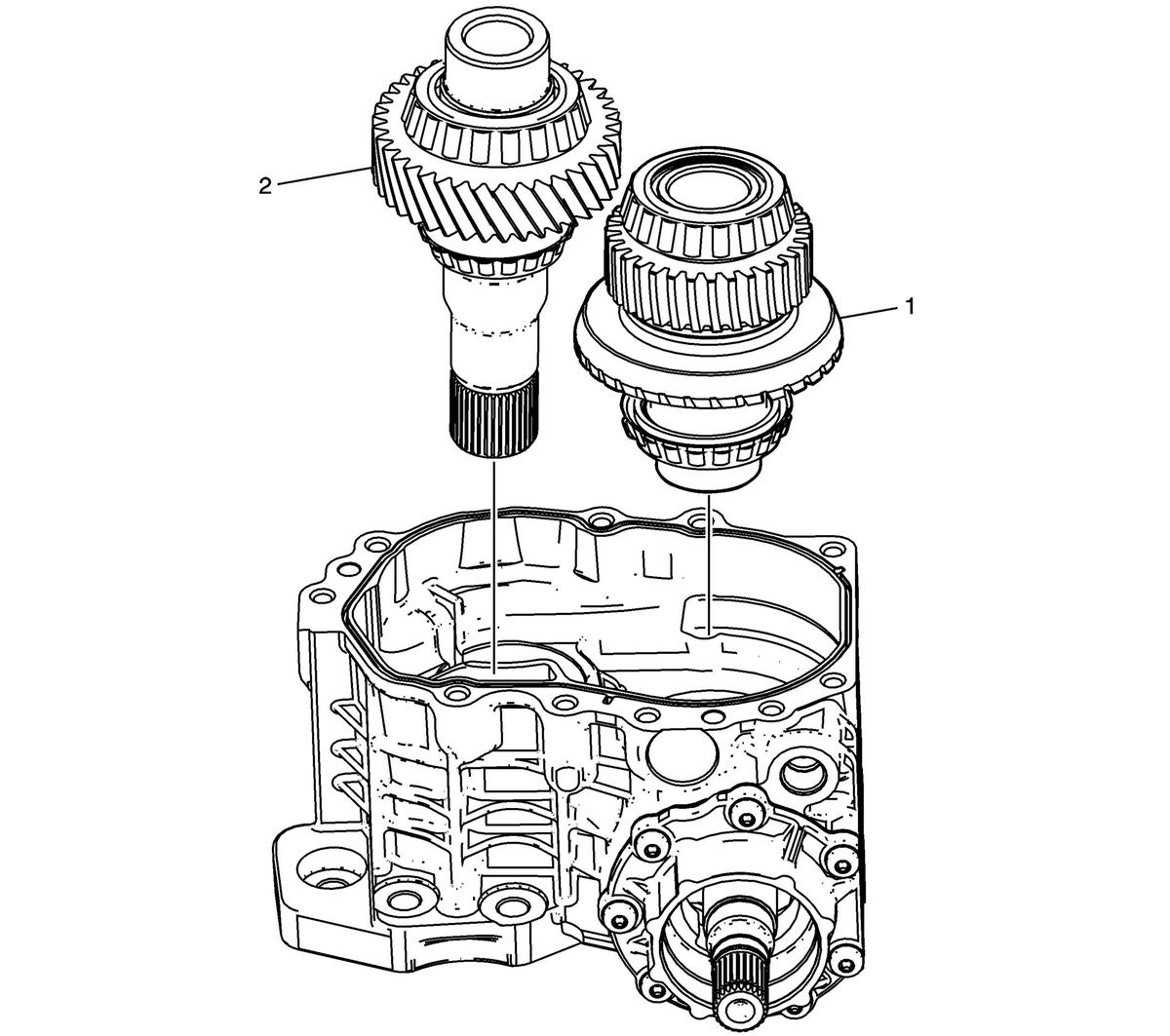

Power Transfer Unit Input Shaft and Idler Shaft Installation
Callout
Component Name
1
Power Transfer Unit Idler Shaft
2
Power Transfer Unit Input Shaft
Courtesy of GENERAL MOTORS COMPANY
