Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

WARNING:
Ensure the bearing in the intermediate steering shaft outer boot does NOT become dislodged while installing the intermediate steering shaft inner boot. If the bearing dislodges then binding in the steering system may occur, causing difficulty in steering the vehicle.

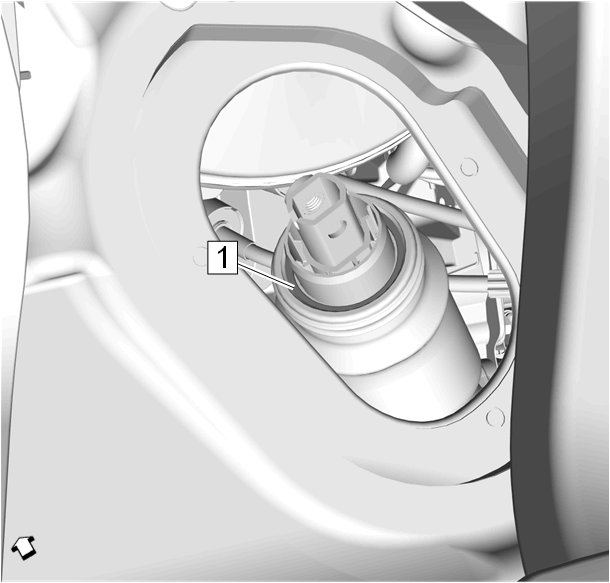

If equipped, inspect the intermediate steering shaft outer boot bearing (1) and ensure the bearing has NOT become dislodged.

If the bearing is dislodged, install the bearing in the outer boot correctly before proceeding to the next step.
Courtesy of GENERAL MOTORS COMPANY

NOTE:

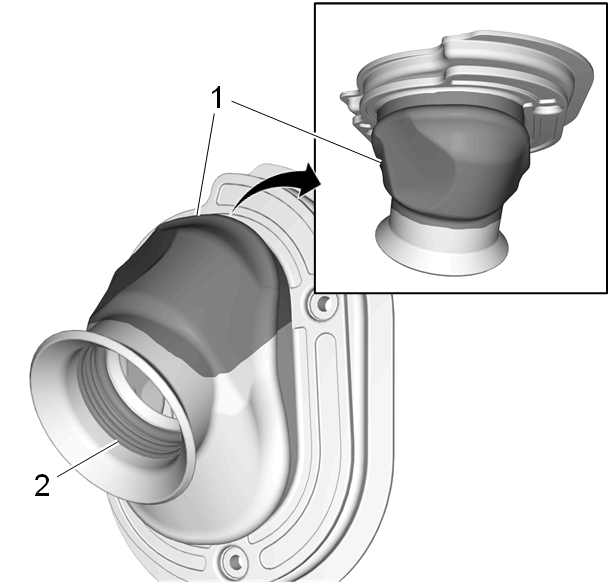

Apply a thin soap water film.

Area (1, 2) - Lubricate
Courtesy of GENERAL MOTORS COMPANY

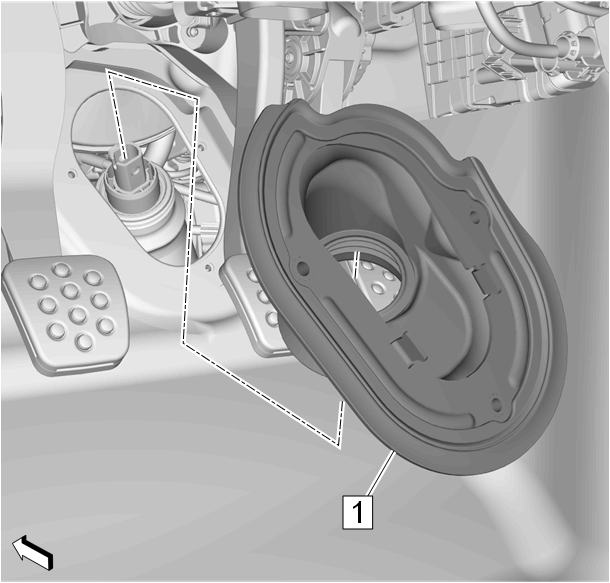

Intermediate Steering Shaft Boot- Inner (1) - Reposition
Courtesy of GENERAL MOTORS COMPANY

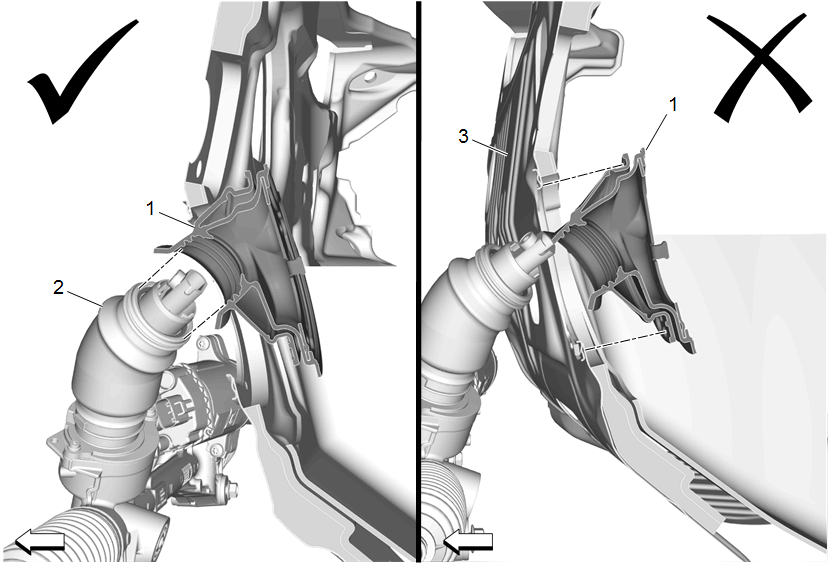

When installing the intermediate steering shaft inner boot (1), ensure the inner boot is aligned properly with the intermediate steering shaft outer boot (2).

Do NOT align the intermediate steering shaft inner boot (1) to the bulkhead (3) while installation.
Courtesy of GENERAL MOTORS COMPANY

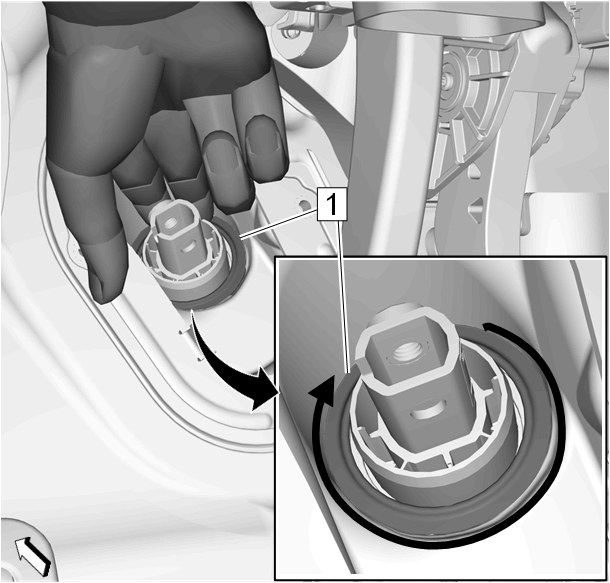

Massage in area (1) on the whole circumference (arrow), the intermediate steering shaft inner boot onto the intermediate steering shaft outer boot.
Lift the lip of the intermediate steering shaft inner boot and secure the boot to the intermediate steering shaft pass through.

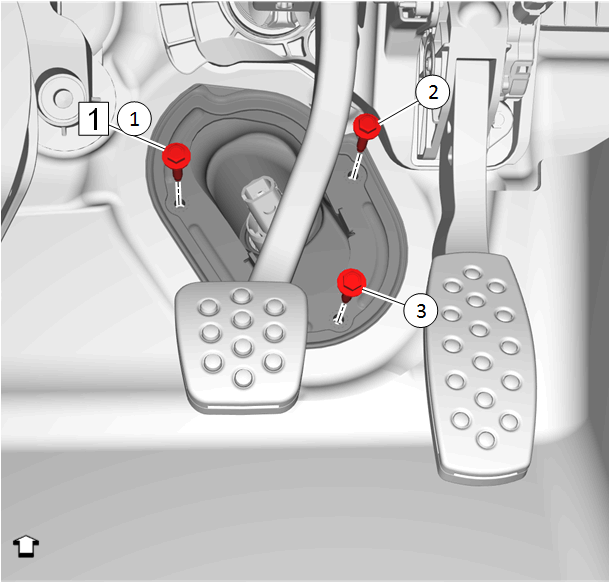

Fig 1: Identifying Intermediate Steering Shaft Boot Bolt
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Fastener Caution
Intermediate Steering Shaft Boot Bolt - Inner (1) - Install and tighten [3x] 9 N.m (80 lb in) - Tighten in the sequence shown.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
The upper boot must be installed and connected to the lower boot correctly. If not, water could enter the boot and over time, corrode the steering shaft and/or penetrate the input shaft seal of the steering gear. If water enters the steering gear, it may cause loss of power assist.

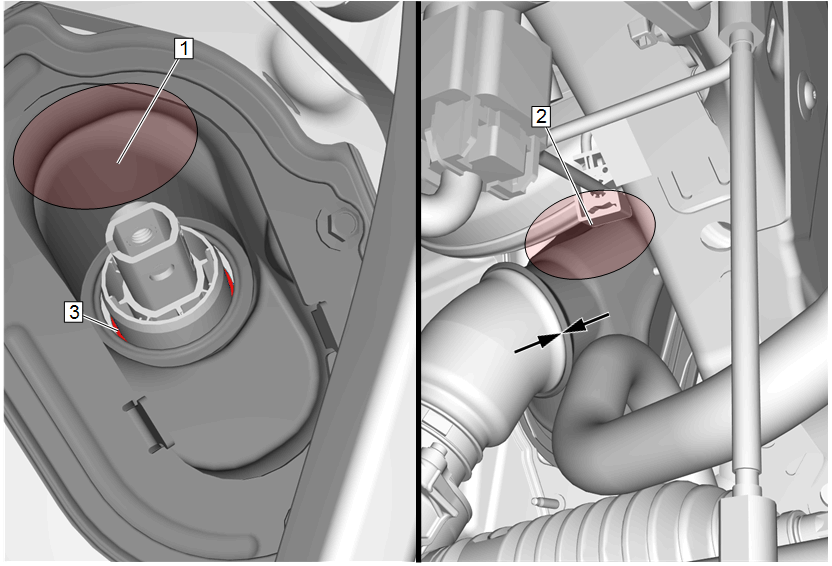

Inspect for the following conditions:
- Intermediate steering shaft inner boot is NOT flexed, especially in the areas (1, 2).
- NO gap (arrow) between intermediate steering shaft inner boot and intermediate steering shaft outer boot.
- If equipped, intermediate steering shaft outer boot bearing (3) is NOT dislodged.
If a condition exists repeat the installation procedure.
Courtesy of GENERAL MOTORS COMPANY

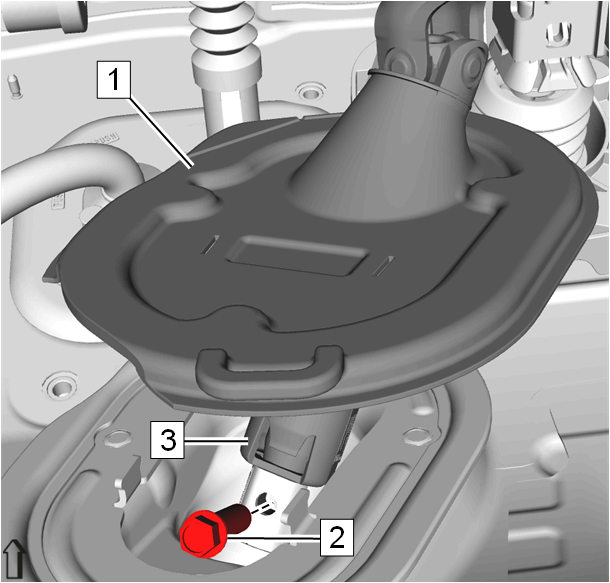

Upper Intermediate Steering Shaft (3) & Intermediate Steering Shaft Boot- Upper (1) - Reposition
Upper Intermediate Steering Shaft (3) @ Intermediate Steering Shaft - Connect - Upper Intermediate Steering Shaft Replacement
