K71 Transmission Control Module X1 (MRC)
 Courtesy of GENERAL MOTORS COMPANY
|

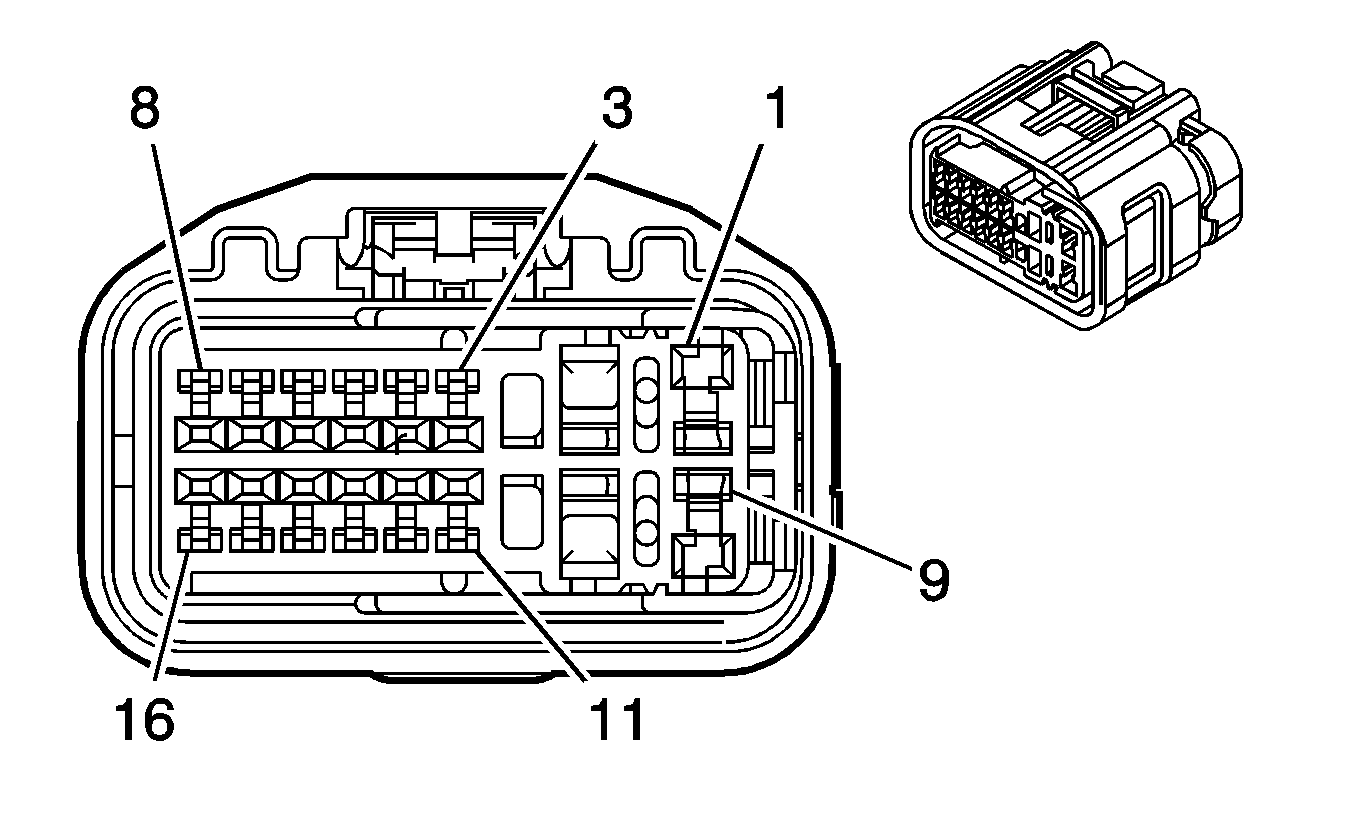

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13586798
- Service Connector: 19153172
- Description: 16-Way F 0.64, 1.5 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13578896 |
J-35616-64B (LT BU) |
J-38125-553 |
7116-4721-02 |
Yazaki 14 |
J |
J |
| II |
Not Available |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
RD/GN |
2173 |
12 Volt Regulated Supply Voltage 2 |
II |
- |
| 2 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
WH/GY |
1786 |
Transmission Park/Neutral Signal 1 |
I |
- |
| 6 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data [-] 1 |
I |
- |
| 7 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data [+] 1 |
I |
- |
| 8 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data [+] 1 |
I |
- |
| 9 |
1.5 |
BK/WH |
151 |
Ground 1 |
II |
- |
| 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.5 |
VT/BK |
2139 |
Run/Crank Ignition 1 Voltage 21 |
I |
- |
| 12 |
0.5 |
VT/YE |
5985 |
Accessory Wake-Up Serial Data |
I |
- |
| 13 |
- |
- |
- |
Not Occupied |
- |
- |
| 14 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data [-] 1 |
I |
- |
| 15 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
