K111 Fuel Pump Driver Control Module

Courtesy of GENERAL MOTORS COMPANY

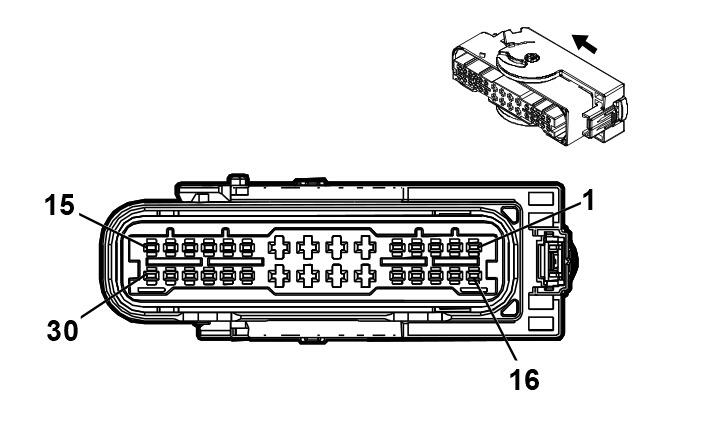

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	No Tool Required	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	VT	3889	Powertrain Sensor Bus Relay Control	I	-
3 - 6	-	-	-	Not Occupied	-	-
7	2.0	RD/VT	2640	Secondary Fused Battery Positive Voltage 26	I	-
8	2.5	GY	120	Fuel Pump Control	I	-
9	-	-	-	Not Occupied	-	-
10	0.5	YE/RD	2709	Fuel Tank Pressure Sensor 5V Reference	I	-
11	0.5	BU/WH	890	Fuel Tank Pressure Sensor Signal	I	-
12	-	-	-	Not Occupied	-	-
13	0.5	BU/VT	1589	Primary Fuel Level Sensor Signal 2	I	-
14	0.5	BU/WH	1937	Secondary Fuel Level Sensor Signal	I	-
15	0.5	WH	4499	High Speed GMLAN Serial Data [-] 7	I	-
16	0.5	VT/YE	5985	Accessory Wake-Up Serial Data	I	-
17	0.5	VT/GY	139	Run/Crank Ignition 1 Voltage 1	I	-
18	0.5	GN/GY	465	Fuel Pump Primary Relay Control	I	-
19 - 20	-	-	-	Not Occupied	-	-
21	0.5	WH	1310	EVAP Vent Solenoid Valve Control	I	-
22	2.0	BK	2650	Ground 26	I	-
23	1.0	BARE	7444	Fuel Pump Assembly Shield Ground	I	-
24	2.5	BK/GN	1580	Fuel Pump Low Reference	I	-
25	0.5	BK/BN	6284	Fuel Tank Pressure Sensor Low Reference	I	-
26 - 27	-	-	-	Not Occupied	-	-
28	0.5	BK/GN	6281	Fuel Level Sensor Low Reference	I	-
29	0.5	BK/BU	6282	Fuel Level Sensor 2 Low Reference	I	-
30	0.5	BU/BN	4498	High Speed GMLAN Serial Data [+] 7	I	-
