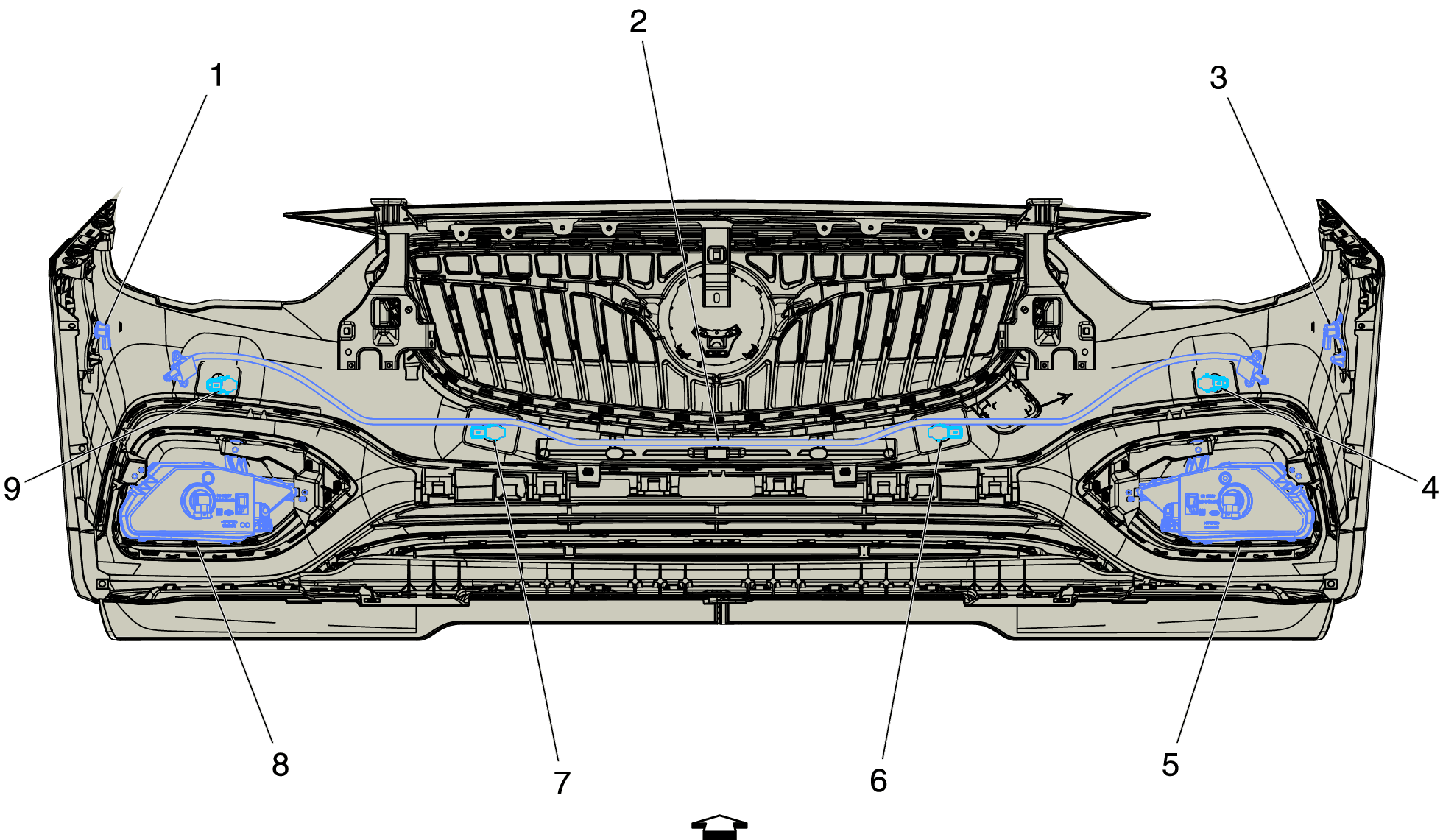

Front Fascia Components
Front Fascia Components
| Component Name | Callout |
|---|---|
| E2LF Side Marker Lamp - Left Front E2LF Side Marker Lamp - Left Front | 1 |
| B82F Pedestrian Impact Detection Sensor - Upper Beam Front (B3T) B82F Pedestrian Impact Detection Sensor - Upper Beam Front X1 (B3T) , or B82F Pedestrian Impact Detection Sensor - Upper Beam Front X2 (B3T) | 2 |
| E2RF Side Marker Lamp - Right Front E2RF Side Marker Lamp - Right Front | 3 |
| B306D Parking Assist Sensor - Front Right Outer (UD5/UD7) B306D Parking Assist Sensor - Front Right Outer | 4 |
| E29RF Fog Lamp - Right Front (T3U) E29RF Fog Lamp - Right Front (T3U) | 5 |
| B306C Parking Assist Sensor - Front Right Middle (UD5/UD7) B306C Parking Assist Sensor - Front Right Middle | 6 |
| B306B Parking Assist Sensor - Front Left Middle (UD5/UD7) B306B Parking Assist Sensor - Front Left Middle | 7 |
| E29LF Fog Lamp - Left Front (T3U) E29LF Fog Lamp - Left Front (T3U) | 8 |
| B306A Parking Assist Sensor - Front Left Outer (UD5/UD7) B306A Parking Assist Sensor - Front Left Outer (UD5/UD7) | 9 |
