Installation Procedure

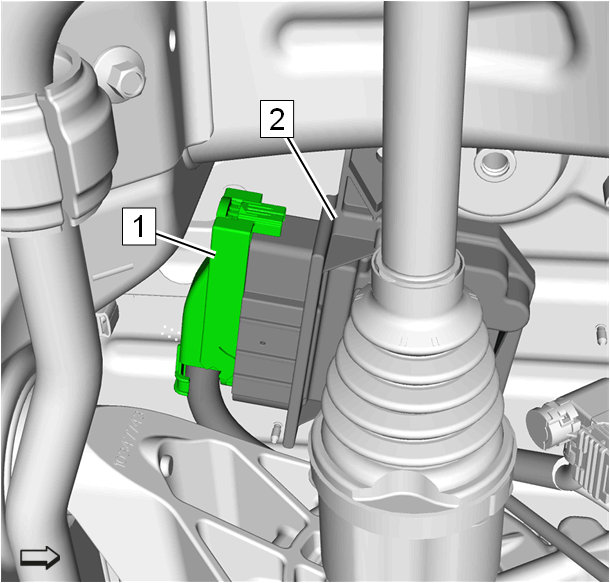

  1. GM4598870Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (2) - Install

  2. Connect the electrical connector. (1)

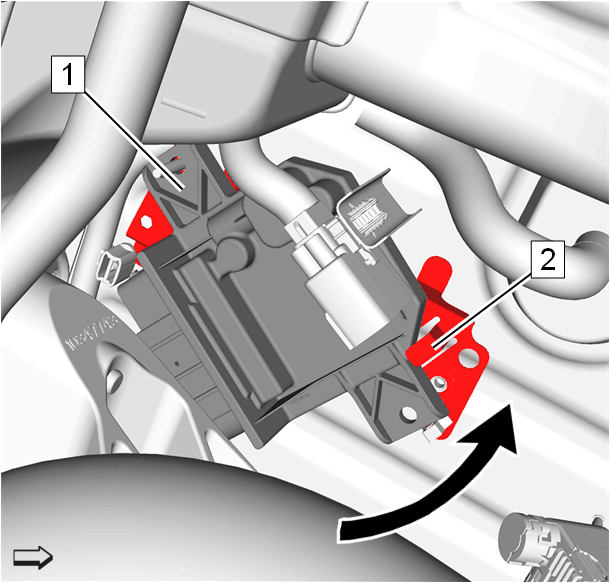

  3. GM4589385Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (1) @ Bracket (2) - Install - Rotate counterclockwise

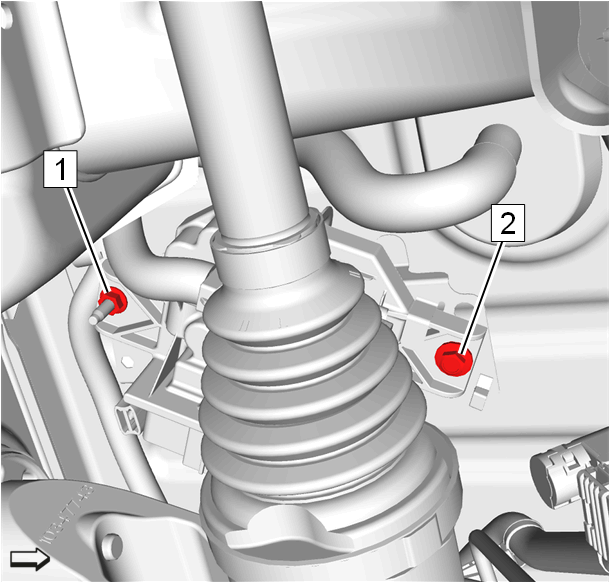

  4. GM4589383Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to: Fastener Caution

    Fuel Pump Power Control Module Bolt (2) - Install and tighten 9 N.m (80 lb in)

  5. Fuel Pump Power Control Module Nut (1) - Install and tighten 9 N.m (80 lb in)

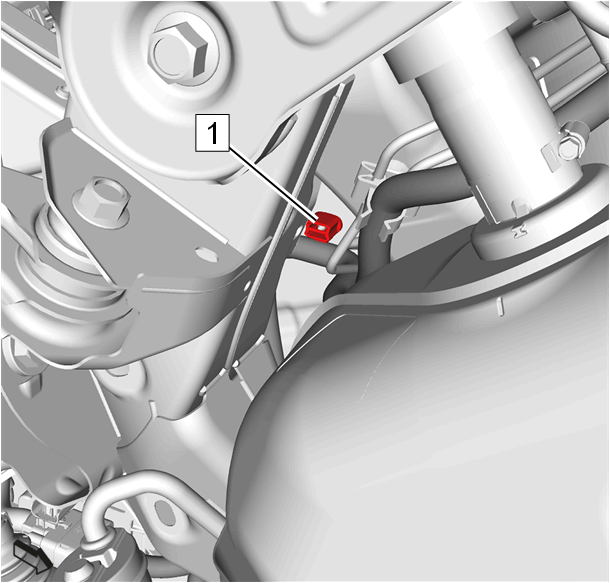

  6. GM4598869Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install

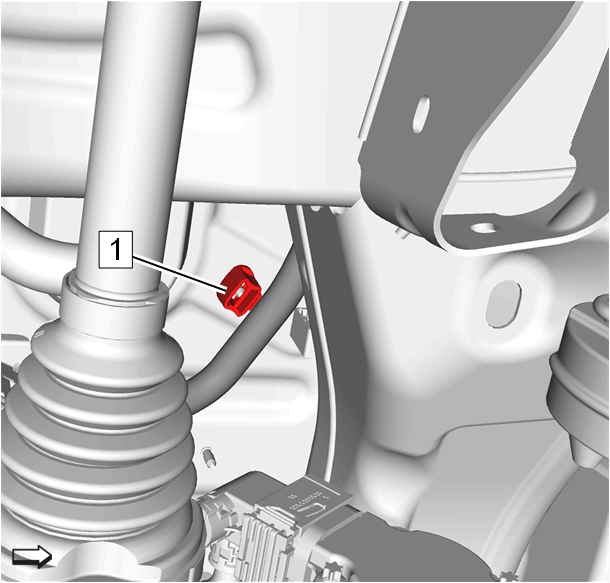

  7. GM4589384Courtesy of GENERAL MOTORS COMPANY

    Wiring Harness Retainer (1) - Install

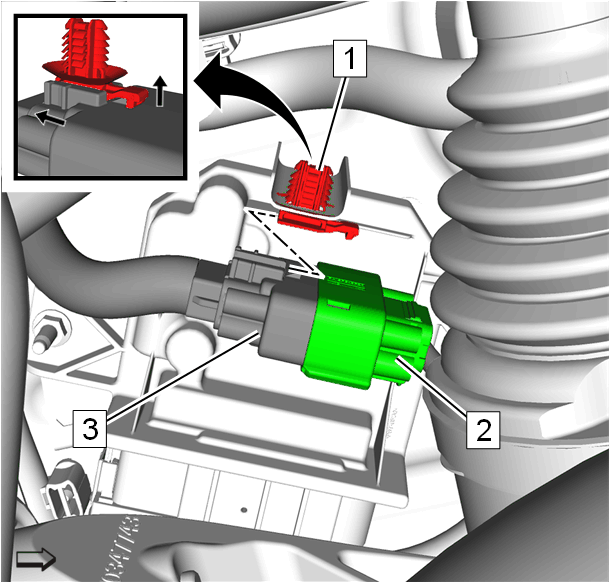

  8. GM4589382Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (3) @ Clip (1) - Install

  9. Connect the electrical connector. (2)
  10. Lower the vehicle.
  11. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (2.0L LTG)
