P17 Info Display Module X1 (IOR)

Courtesy of GENERAL MOTORS COMPANY

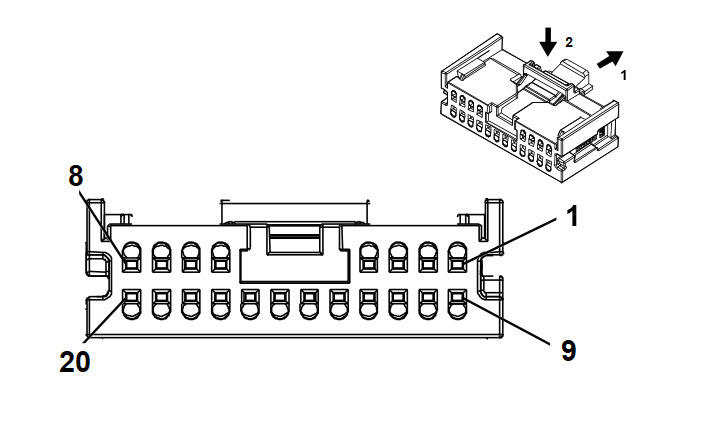

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19333221	EL-35616-58 (BK)	EL-38125-58	Not Available	Not Available	Not Available	Not Available
II	Not Required	EL-35616-58 (BK)	No Tool Required	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35 0.35	BU/RD RD/BU	2807 3240	Radio Keypad Voltage Reference Secondary Fused Battery Positive Voltage 32	I II	IOR UV6
2	0.35	GY/BU	2803	Radio Display Touch Interrupt Request Signal	I	IOR
3	0.35	GY/GN	1102	Low Speed GMLAN Serial Data 2	II	-
4	0.35	BU	4315	Radio Volume Up Switch Signal	I	IOR
5	0.35 0.35	GY/BN GN/BU	4314 7532	Radio Volume Down Switch Signal Radio LIN Bus 1	I II	IOR IOS/IOT
6	0.35	BN/WH	2809	Radio Keypad Power Signal	I	IOR
7	0.35	VT/WH	2810	Radio Keypad Button Signal	I	IOR
8	0.35 0.35	BU/GY GN/WH	2808 7527	Radio Keypad Dimming Control Human Machine Interface Control Module LIN Bus 1	I II	IOR IOS/IOT
9	0.35 0.35	BU/GN BK	2813 1750	Radio Display Backlight Dimming Control Ground 17	I II	IOR IOS/IOT
10	0.35 0.35	BK BK	1750 1850	Ground 17 Ground 18	II II	IOR IOS/IOT
11	0.35	BK/GN	2804	Radio Display Backlight Low Reference	I	IOR
12	0.35	WH	2517	Keypad Red LED Control	I	IOR
13	0.35	GN/BK	2805	Radio Keypad Feedback Signal	I	IOR
14	0.35	BU	4315	Radio Volume Up Switch Signal	I	IOR
15	0.35	GY/BN	4314	Radio Volume Down Switch Signal	I	IOR
16	0.35	BN/WH	2809	Radio Keypad Power Signal	I	IOR
17	0.35	VT/WH	2810	Radio Keypad Button Signal	I	IOR
18	0.35	BU/GY	2808	Radio Keypad Dimming Control	I	IOR
19	0.35	GY/VT	3363	Navigation Display Dimming Control	I	IOR
20	0.35	BK/YE	2806	Radio Keypad Low Reference	I	IOR
