B14E Transmission Input/Intermediate Shaft Speed Sensor
 Courtesy of GENERAL MOTORS COMPANY
|

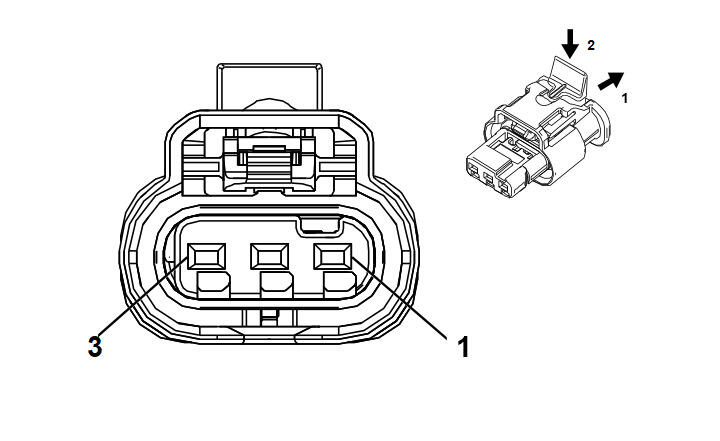

Connector Part Information
- Harness Type: Engine
- OEM Connector: 33176362
- Service Connector: 19366844
- Description: 3-Way F 1.2 MCP Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-16 (LT GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN/VT |
4510 |
Transmission Intermediate Speed Signal |
I |
- |
| 2 |
0.5 |
YE/GN |
4170 |
Transmission Output Shaft Speed Sensor Circuit 9V Reference |
I |
- |
| 3 |
0.5 |
GN/YE |
6353 |
Input Speed Signal |
I |
- |
