Communication Interface Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

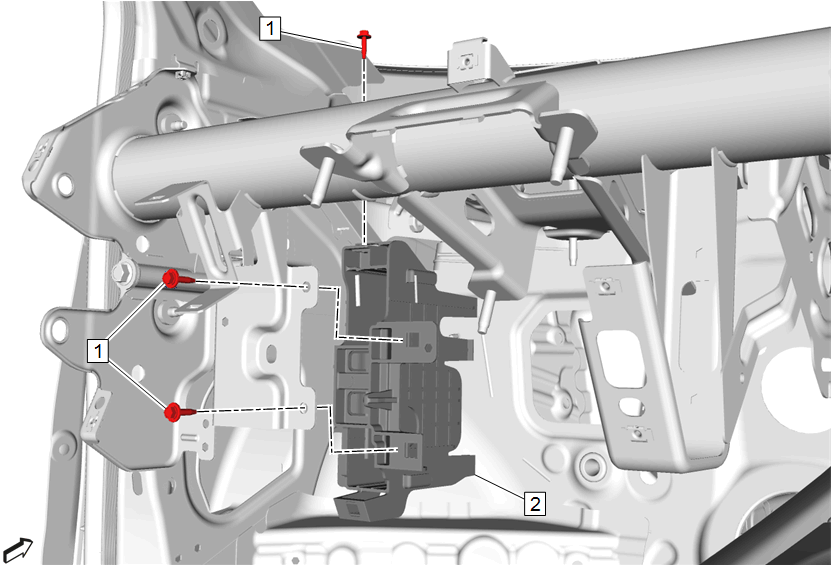

Callout	Component Name
Preliminary Procedure  Instrument Panel Assembly Replacement
1	Communication Interface Module Bracket Bolt [3x] CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Communication Interface Module Bracket Procedure  Transfer components as necessary.
