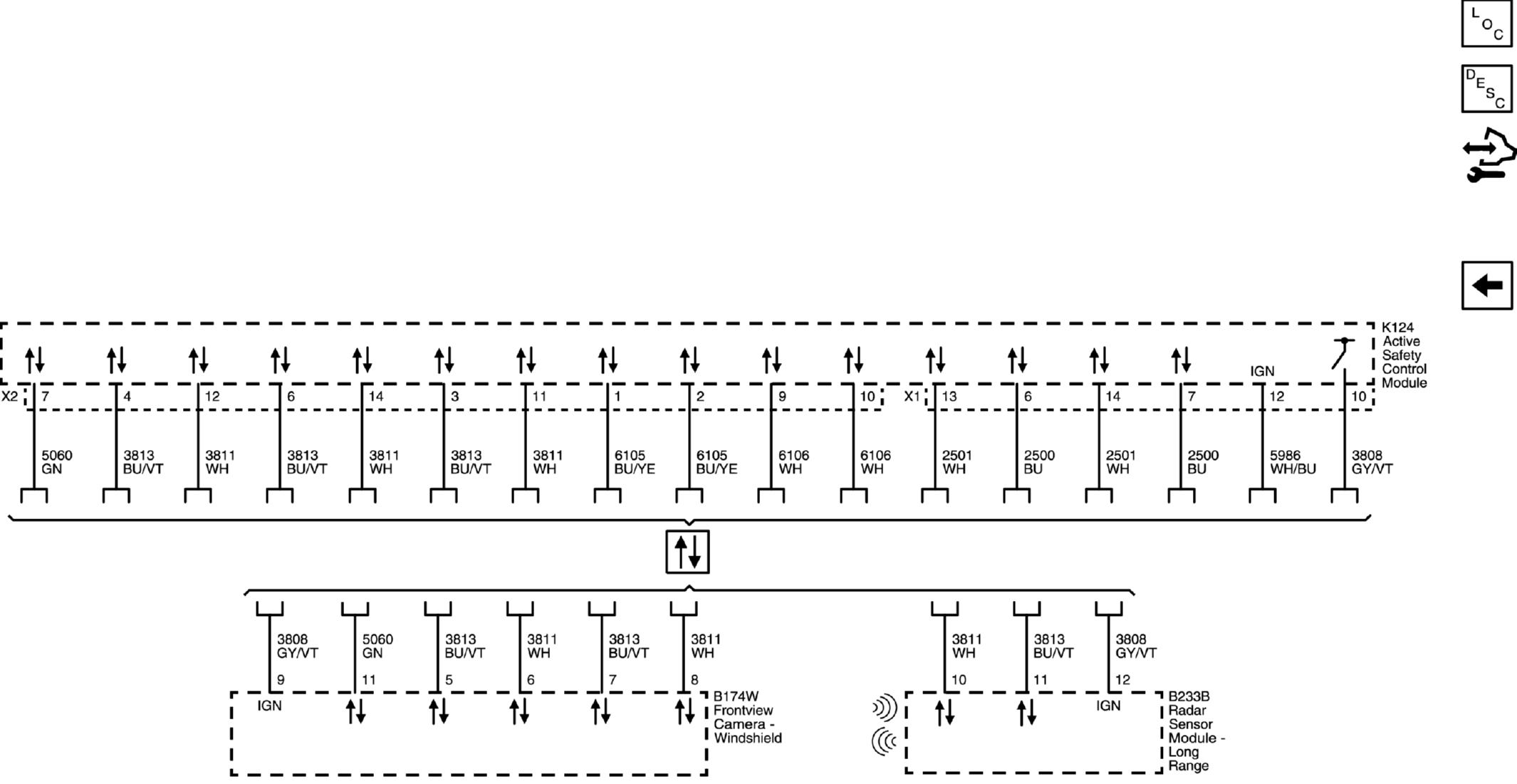

Collision Avoidance - Serial Data Camera, Module and Long Range Radar (UGN)

GM5209669

Courtesy of GENERAL MOTORS COMPANY
