Wireless Charging System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

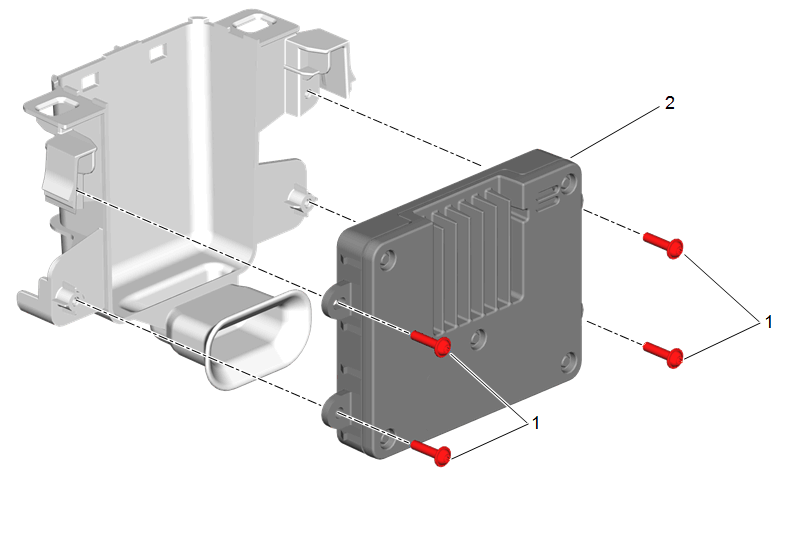

Callout	Component Name
Preliminary Procedure  Front Floor Console Housing Replacement
1	Wireless Charging System Module Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten  1.2 N.m (11 lb in)
2	Wireless Charging System Module
