Turn Signal Switch Replacement

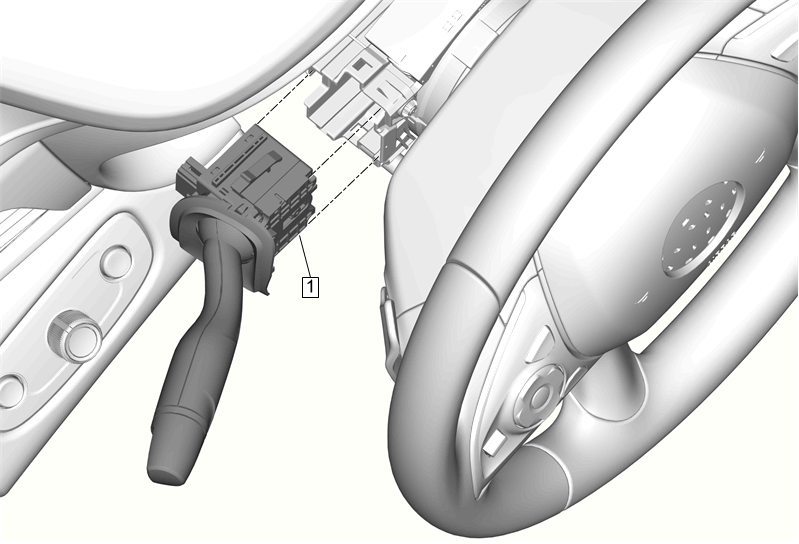

GM4421189Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Column Lower Trim Cover Replacement (N38) , or Steering Column Lower Trim Cover Replacement (N37)
  2. Reposition the steering column upper trim cover as necessary.
1 Turn Signal Switch

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.
