Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Position a NEW intermediate steering shaft outer boot clamp (1) onto the intermediate steering shaft outer boot.

Courtesy of GENERAL MOTORS COMPANY

Position the intermediate steering shaft outer boot (1) on the vehicle.

Courtesy of GENERAL MOTORS COMPANY

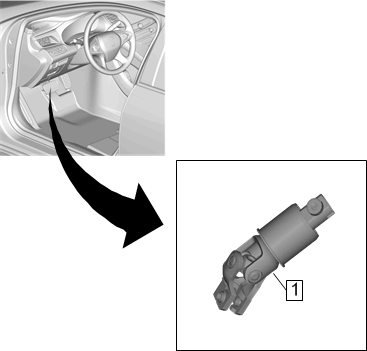

Position the intermediate steering shaft (1) in the vehicle.

Courtesy of GENERAL MOTORS COMPANY

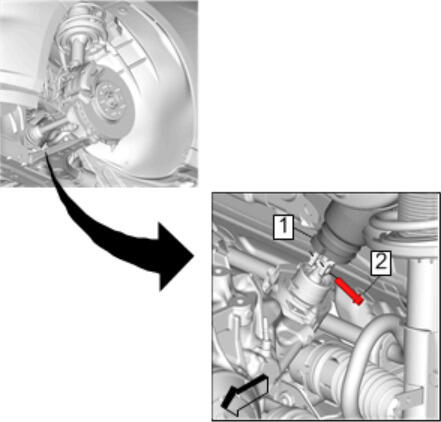

Intermediate Steering Shaft Lower Bolt (2) - Install and tighten 42 N.m (31 lb ft)

1. Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry.
2. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers

Courtesy of GENERAL MOTORS COMPANY

Use the DT-35910  pliers (1) to install the NEW intermediate steering shaft outer boot clamp.

Courtesy of GENERAL MOTORS COMPANY

Intermediate Steering Shaft Inner Boot (1) - Install - Intermediate Steering Shaft Boot Replacement (Inner)

Courtesy of GENERAL MOTORS COMPANY

Upper Intermediate Steering Shaft (1) - Install - Upper Intermediate Steering Shaft Replacement
