Removal Procedure

Drain the cooling system. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
Courtesy of GENERAL MOTORS COMPANY

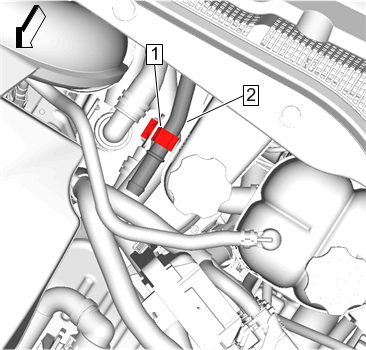

Generator Control Module Coolant Hose (2)@Generator Control Module Coolant Hose - Remove - Generator Control Module Coolant Hose Replacement (LHN Generator Control Module Coolant Hose to Starter Generator)
Courtesy of GENERAL MOTORS COMPANY

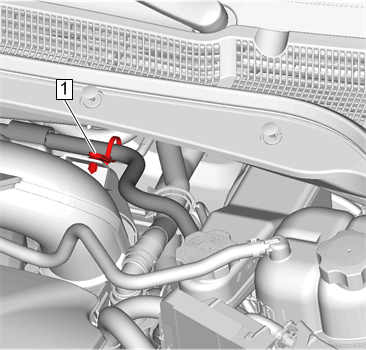

Generator Control Module Coolant Hose (2)@Hose Clip (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

Strap (1)@Air Cleaner Outlet Resonator - Remove
Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement
Courtesy of GENERAL MOTORS COMPANY

Generator Control Module Coolant Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
Generator Control Module Coolant Hose (2)@Starter Generator - Remove
Generator Control Module Coolant Hose (2) - Remove
