Removal Procedure

  1. Front Bumper Fascia - Remove - Front Bumper Fascia Replacement
  2. Drain the cooling system. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)

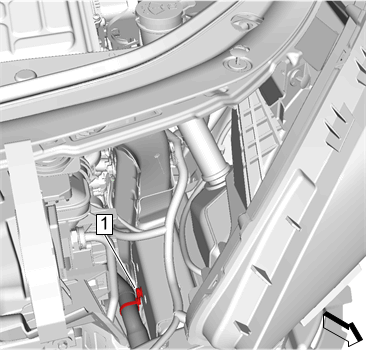

  3. GM4770127Courtesy of GENERAL MOTORS COMPANY

    Retainer (1)@Front Compartment Inner Side Rail - Remove

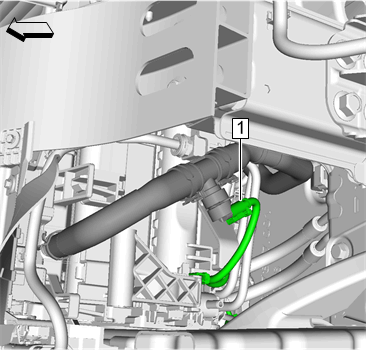

  4. GM4769972Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Temperature Sensor Electrical Connector (1)@Engine Coolant Temperature Sensor - Disconnect

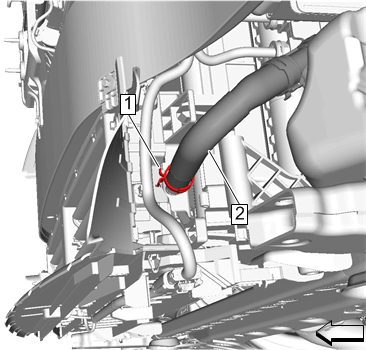

  5. GM4769976Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Generator Control Module Radiator Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  6. Drive Motor Generator Control Module Radiator Outlet Hose (2)@Auxiliary Radiator - Remove
  7. GM4769979Courtesy of GENERAL MOTORS COMPANY

    Drive Motor Generator Control Module Radiator Outlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  8. Drive Motor Generator Control Module Radiator Outlet Hose (2)@Generator Control Module Coolant/Air Separator - Remove
  9. Drive Motor Generator Control Module Radiator Outlet Hose (2) - Remove
  10. Transfer components as necessary.
