Removal Procedure
- Drain the cooling system. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
- Front Bumper Fascia - Remove - Front Bumper Fascia Replacement

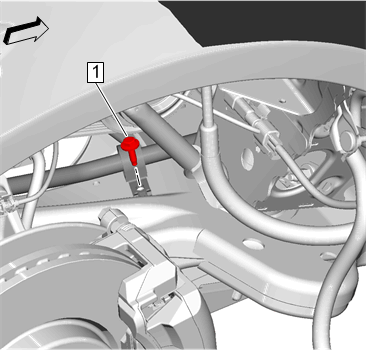

Drive Motor Generator Control Module Radiator Inlet Hose Bolt- Front (1) - Remove

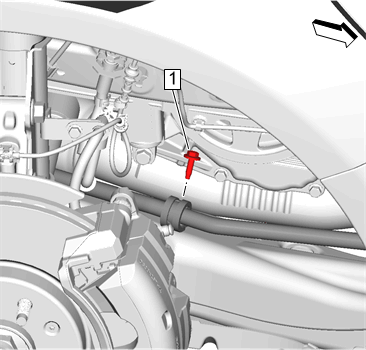

Drive Motor Generator Control Module Radiator Inlet Hose Bolt- Rear (1) - Remove

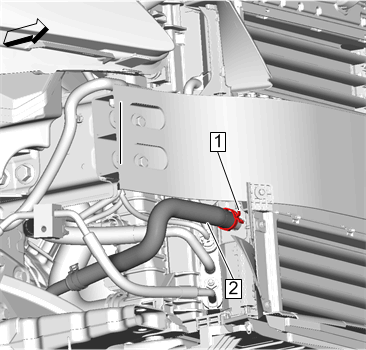

Drive Motor Generator Control Module Radiator Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Drive Motor Generator Control Module Radiator Inlet Hose (2)@Auxiliary Radiator - Remove
- Lower the vehicle.
- Air Cleaner Outlet Duct - Remove - Air Cleaner Outlet Duct Replacement
Drive Motor Generator Control Module Radiator Inlet Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Drive Motor Generator Control Module Radiator Inlet Hose (2)@Starter Generator - Remove
- Drive Motor Generator Control Module Radiator Inlet Hose (2) - Remove
