Installation Procedure

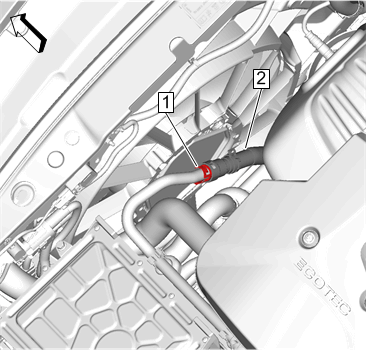

Drive Motor Generator Control Module Coolant Pump Hose (2)@Generator Control Module Coolant Pump Hose - Install
- Retainer (1) - Engage
Drive Motor Generator Control Module Coolant Pump Hose (2)@Generator Control Module Coolant Pump - Install
- Drive Motor Generator Control Module Coolant Pump Hose Clamp (1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
- Start the engine and check for coolant leaks.
