Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) - Connect
Install the starter. (2)
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

Starter Mounting Bolt (1) - Install and tighten [2x] 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

Battery Positive Cable (2) - Install
Starter Solenoid Cable Nut (1) - Install and tighten 12.5 N.m (111 lb in)
Battery Positive Cable Conduit Fastener (3) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Knock Sensor- Bank 2 (1) - Install - Knock Sensor Replacement - Bank 2
Courtesy of GENERAL MOTORS COMPANY

Starter Heat Shield (2) - Install - Starter Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

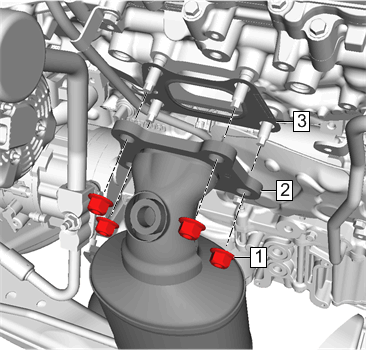

Three-Way Catalytic Converter- Bank 2 (2) - Install - Three-Way Catalytic Converter Replacement (Bank 1, FWD)Three-Way Catalytic Converter Replacement (Bank 1, AWD)Three-Way Catalytic Converter Replacement (Bank 2)
Lower the vehicle.
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
