Installation Procedure

  1. GM4262175Courtesy of GENERAL MOTORS COMPANY

    Battery (6) - Install

  2. Battery Hold Down Retainer (2) - Install
    3. CAUTION:

    Refer to Fastener Caution

  3. Battery Hold Down Retainer Nut (1) - Install and tighten 9 N.m (80 lb in)
  4. Battery Hold Down Retainer (4) - Install
  5. Battery Hold Down Bolt (3) - Install and tighten 22 N.m (16 lb ft)
  6. Battery Vent Hose (5) - Connect
  7. GM4262173Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Fuse Block (2) - Install

  8. Battery Positive Post Clamp Nut (1) - Tighten 4.5 N.m (40 lb in)
  9. GM4262102Courtesy of GENERAL MOTORS COMPANY

    Battery Distribution Fuse Block Cover (1) - Install

  10. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)

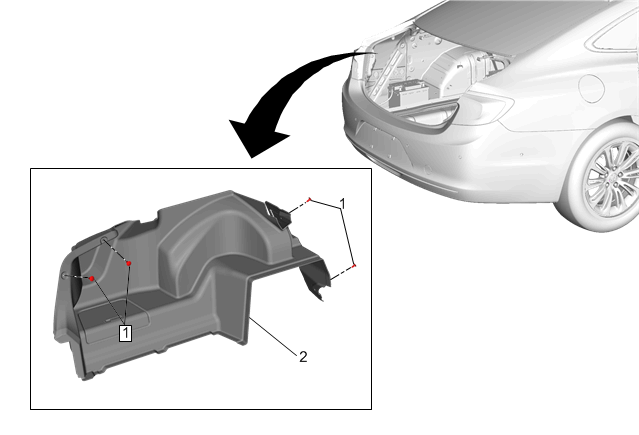

  11. GM4502404Courtesy of GENERAL MOTORS COMPANY

    Rear Compartment Side Trim Panel-Left Side (2) - Install - Rear Compartment Side Trim Replacement - Left Side (With LHN)Rear Compartment Side Trim Replacement - Left Side (With LGX)
