Rear Compartment Lid Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

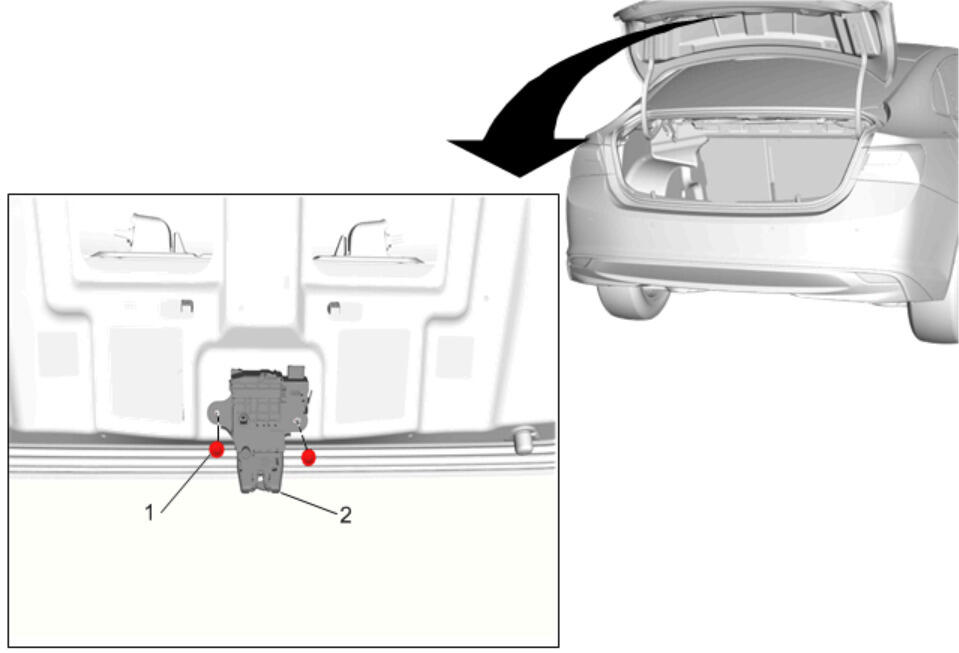

Callout	Component Name
Preliminary Procedure  Auxiliary Rear Compartment Latch Release Handle Replacement
1	Rear Compartment Lid Latch Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Rear Compartment Lid Latch Procedure  Disconnect the electrical connector.
